10430100, Epic Contact Protective Cover, H-A Series Thread Size PG11 4 Way, For Use With Heavy Duty Power Connectors

2436120
Номер производителя: 10430100Производитель: Epic Contact
Цена за шт.
846.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

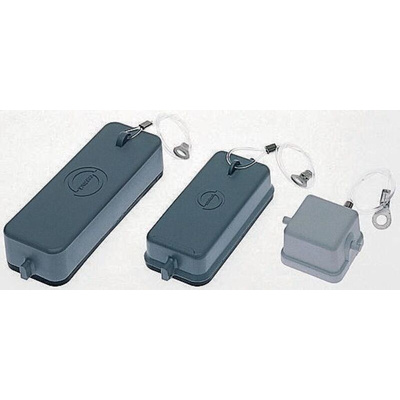

Protective Dust Cover for EPIC H-A Connectors

H-A Dust covers giving IP65 protection when fitted to sockets
For panel mounting sockets, cable coupler sockets and surface mounting sockets
Nylon ties are fitted so that they may be secured to the socket

Approvals

UL listed; CSA certified; SEV

Inserts & Accessories

Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)

Dimensions: 3 and 4-way

H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.

Dimensions: 10 and 16 way

Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry

Dimensions: 32//48 way - gland size PG29

Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket

Техническая спецификация
pdfUL E75770
pdfCSA 53004
pdfDuco H-A - EPIC Protective Covers
Для использования с:
Heavy Duty Power Connectors
Кол-во контактов:
4
Номинальное напряжение:
250 В перем. тока
Размер резьбы:
PG11
Род:
Female
Серия:
H-A
Тип аксессуара:
Защитная крышка
Формат полюса:
4P+E
