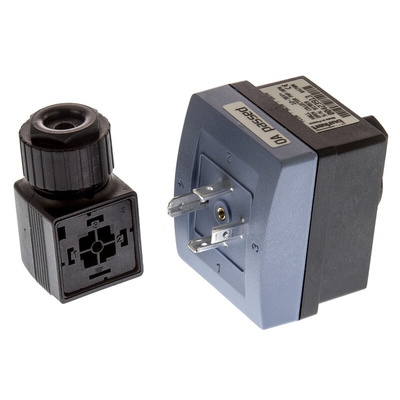

423913, Burkert Flow Controller, Cable Plug, PNP, 12 → 36 V dc, Регулятор потока

2497462
Номер производителя: 423913Производитель: Burkert
Цена за шт.
42864.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Burkert Flow Transmitter + Sensor

The Burkert flow transmitter + sensor has an open collector (PNP/NPN) type output and cable plug electrical connection device. It is designed to measure the continuous flow of liquids. Its operating voltage rating ranges between 12VDC and 36VDC. This sensor produces a signal which can be transmitted and processed enabling the end-user to get a flow measurement. The division is performed by measuring the pulses for the required unit of flow (litres per min.) and then, by the use of four rotary switches on the divider unit (discontinued) - that it is on top of the transmitter to divide signals enabling the output to be tailored to individual requirements. The correct dividing factor can be set up to give the required pulses out for the flow rate.

Features and Benefits

Signal pickup through hall sensor
Flow velocity ranges between 0.3m/s and 10m/s
Sensor size range is DN15 to DN65 with bayonet fitting
3-wire frequency for direct connection to PLC (PNP and NPN)
Body material is polycarbonate PPO

Applications

Flow measurement and dosing control
Water treatment and process technology
Cooling water monitoring
Industrial wastewater treatment
Auxiliary plants irrigation
Ideal system solutions for pure water and chemical aggressive liquids

Certifications

IP65 rated
EN 175301803
DIN 43650

Техническая спецификация
pdf8030 Paddle-Wheel Flow Sensor Instruction Manual
pdfDatasheet
pdfBurket Sensor Overview
Вид монтажа:
Компактный
Диапазон диаметра трубы:
DN 6 → 65 мм
Контроль выхода:
PNP
Напряжение питания:
12 → 36 В пост. тока
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-15°C
Электрическое соединение:
Cable Plug
