RS PRO Point, Test Probe, 3A

2615187
Производитель: RS PRO
Цена за шт. (норма упаковки 5 шт)
990.00 руб. (С НДС) *
Количество 5+ 25+ 50+ 100+
Цена 990.00 руб. 915.00 руб. 843.00 руб. 768.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

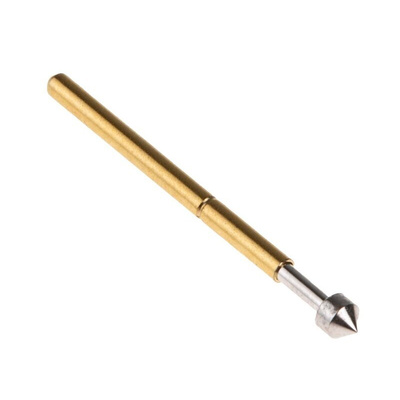

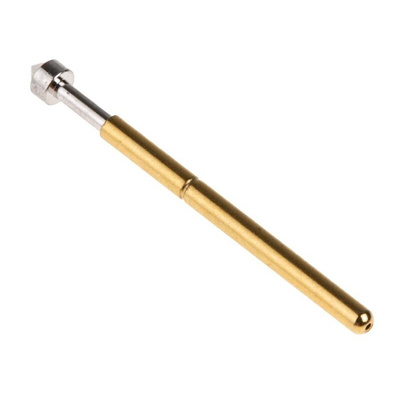

RS Pro Spring Probe with Pointed Head

Brought to you under the trusted RS Pro Brand, this pointed head spring spade terminal probe is designed to be used with an appropriate receptacle, which is ordered separately. Having the probe separate from the receptacle allows easy replacement of damaged spring test probes without disturbing the wiring.

The probe is suited ideally (in development and production) for automatic test equipment (ATE) and test jigs, where fast testing of multipoint PCBs and sub-assemblies is required. Receptacles can be push fitted into the mounting plate to provide an airtight seal without the use of adhesives.

The pointed head shape is used for plated-through holes and contamination free boards. It leaves no marks or indentations.

An inserter is available for the 2.54mm pitch receptacles (See stock number 434-790.)

Features and Benefits

• Contact Resistance of 50mΩ
• Current Rating of 3A
• Gold Plated
• Spring Pressure of 1.47 N(g)
• Depth: 1.8mm
• Length: 24.7mm
• Mounting Hole Size: 1.70mm
• Pitch: 2.54mm

Техническая спецификация
pdfDimensional Drawing
pdfRS Pro Datasheet
Диаметр гнезда датчика:
17.04мм
Номинал тока:
3A
Тип наконечника зонда:
Point
