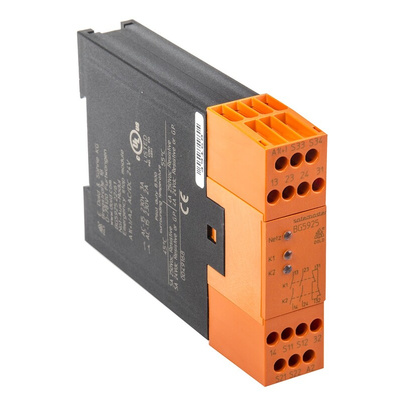

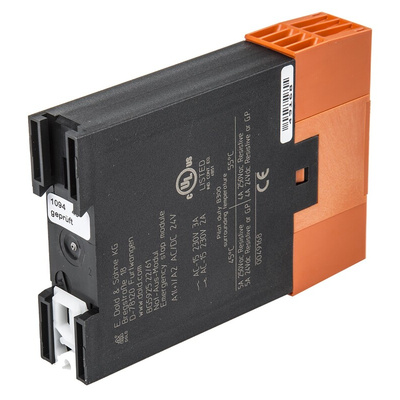

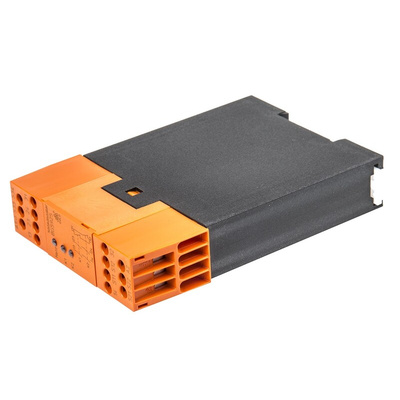

Safemaster BG 5925 Safety Relay, Single or Dual Channel, 24 V ac/dc, 2NO/NC Safety

3277629
Цена за шт.
23421.00 руб. *
Stock Number: 327-7629
Номер производителя: BG5925.22 AC/DC24V
Производитель: Dold

Срок поставки: 4-6 недель со склада из Европы

+

* Цена с НДС справочная в г. Екатеринбурге. В счете возможно увеличение цены на стоимость доставки и сертификации.

Slimfit emergency stop module for SK4, BG5925

Safety category 4 in accordance with DIN EN 954
Output: 2 N/Os, 1 N/C
1 or 2-channel configuration
Line termination detection on the ON button
Programmable: Activation via the ON button or automatic ON function when the operating voltage is applied
Programmable: With / without cross-fault detection in the emergency stop-control loop
Also suitable for IT networks with insulation monitoring
LED indicator for 1.2 and operating mode
With removable terminal clamps
22.5 mm overall width

Input
Nominal voltage UN: AC / DC 24 V
Control voltage on S11: DC 23 V at UN
Control current via S12, S22: 40 mA at UN
Reactivation time: 0.5 s
Minimum voltage on S12, S22: DC 21 V with activated device
Output
Contact assignment: 2 NO, 1 NC
Manual trigger switch-on time: Type 40 ms
Switch-off time during interruption:
S12, S22: Type 15 ms
thermal current Ith: 7A per contact
Switching capability according to AC 15: 3 A / AC 250 V (N/O)
2 A / AC 250 V (NC)
General data
Rated operating current type: Continuous operation
Temperature range: -15 °C → +55 °C
Device dimensions (W x H x D): 22.5 x 84 x 118 mm
Standards

EN 60204-1 (stop functions), EN 418, prEN574, prEN 954-1

Safety Relay Warning
  • With its gold-plated contacts the BG 5925 is also suitable for switching low voltages 1 mVA → 7 VA, 1 mW → 7 W in the 0.1 → 60 V, 1 → 300 mA range. The contacts also allow the max. switching current. As the gold finish would be burnt off at this current rating, the device would no longer be suitable for switching low voltages.

Техническая спецификация
pdfMachine Guarding and Safety Range Overview
pdfEmergency Stop Module Data Sheet

PL ISO 13849-1:
E
SIL IEC 61508:
3
Безопасные контакты:
3
Глубина:
118mm
Диапазон:
Safemaster
Длина:
84mm
Категория безопасности ISO 13849-1:
4
Количество каналов:
1, 2
Напряжение питания:
24 V ac/dc
Серия:
BG 5925
Функция:
Emergency Stop
Ширина:
22.5mm
