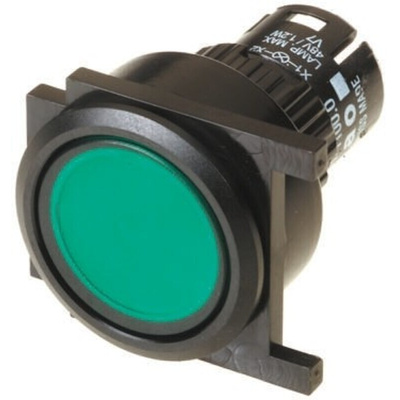

61-1200.0,61-9642.5,61-9933.10, EAO Modular Switch Body, IP65, Green, Panel Mount, Latching for use with Series 61 -20°C +55°C

3314908
Номер производителя: 61-1200.0,61-9642.5,61-9933.10Производитель: EAO
Цена за шт.
5871.00 руб. (С НДС) *
Количество 25+ 100+ 250+ 500+
Цена 5583.00 руб. 5154.00 руб. 4575.00 руб. 3852.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

EAO Flushmount Pushbutton Switches, Series 61

The EAO Series 61 is a high quality, modular switch range that includes pushbuttons, indicators, selector switches, keylock switches and Emergency-stop. Available in raised or flush mount.

Flush mounting (2mm front-of-panel protrusion), professional grade pushbutton switches
Momentary or maintained high quality with a good tactile feel
Flush mounts into 24x24mm square, 25mm round and 24x30mm rectangular cut-outs
Switch rating 5A @ 250Vac
IP65 protection
Large legend area
Self cleaning snap action switching element
Suitable for use with T1 3/4 midget groove lamps or LED, see stock numbers 3607660 or 2829976 typically
For Contact Blocks see stock numbers 219-5447, 219-5453 or 219-5469
Optional tool kit consisting of lens remover, contact block remover and mounting nut spanner is recommended, see stock no. 219-5481

Note

These switches are complete with a bezel for flush mounting. The 25mm diameter bezels are available in either plastic or aluminium. If they are to be used as raised switches, then a 16.5mm diameter cut-out can be used for all heads.

Техническая спецификация
pdf61 Series Pushbutton Product Data
Диапазон рабочих температур:
-20 → +55°C
Для использования с:
Серия 61
Максимальное напряжение переключения:
250В перем. тока
Работа выключателя:
Latching
Рабочая температура - максимальная:
+55°C
Рабочая температура - минимальная:
-20°C
Степень защиты IP:
IP65
Тип монтажа:
Крепление на панель
Тип переключателя:
Нажимная кнопка
Цвет привода:
Зеленый
