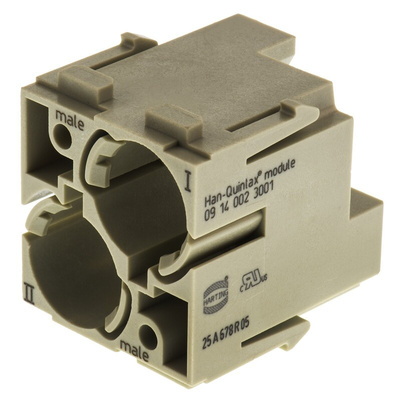

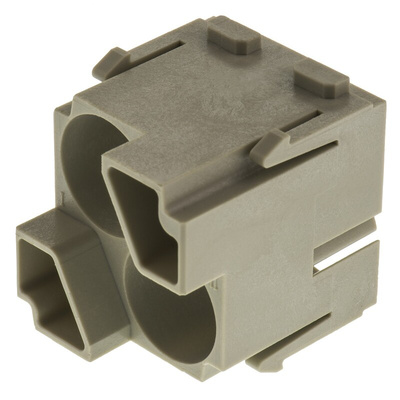

09140023001, HARTING Han-Modular Heavy Duty Power Connector Module, 2 contacts, 10A, Male

3584078
Номер производителя: 09140023001Производитель: HARTING
Цена за шт.
2772.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Han Quintax® Module

Each Qunitax® cylindrical insert accommodates 4 crimp contacts similar to those fitted to the Han® D inserts (See stock no. 156-7267)
Two Han Quintax® cylindrical inserts can be fitted to each Quintax® module
Two Quintax® modules may be fitted to a 4-module frame (stock no. 329-9809 or 329-9815) which in turn can be fitted to a Harting Series ’10A’ housing (e.g. Stock no. 114-8052 - See RS Range 2)
Suitable for screened cable with outer diameter of 3-6mm or 6-9.5mm
Ideal for transmitting very sensitive signals (BUS signals)
Mating cycles ≥500

Note

For crimp tooling for the contacts associated with the Han® D inserts see stock no. 114-7706 or 313-6607

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

Техническая спецификация
pdfDimensional drawing
pdfDatasheet
pdfDatasheet
Диапазон:
Han Quintax
Кол-во контактов:
2
Номинал тока:
10A
Номинальное напряжение:
50 В
Род:
Male
Серия:
Han-Modular
Тип:
Connector Module
