FX0454/S, Bulgin FX Series 10A Slotted Cap Panel Mount Fuse Holder for 5 x 20mm Fuse, PC2, Держатель предохранителя

Screw Cap, BT172D Type

Approvals

UL, CSA, VDE, SEMKO

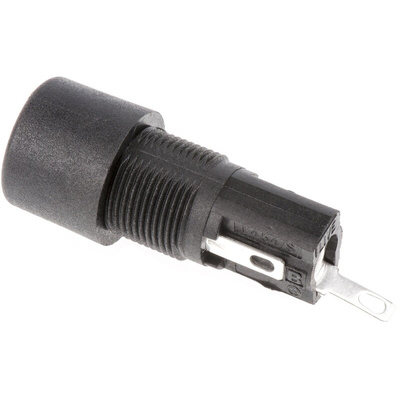

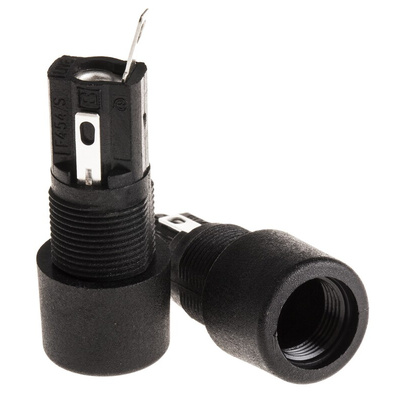

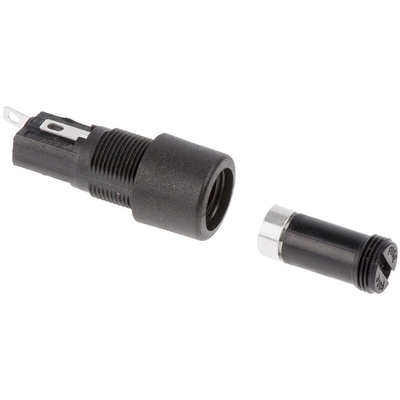

Panel Mount Fuse Holder FX0454/S

From Bulgin these panel mount fuse holders, have been designed to give the required protection for all your electronic equipment and have been manufactured using high grade flame retardant materials.

These fully touch proof panel mount fuse holders are protection category PC2, they have been specifically designed to accommodate 5 x 20mm size fuse and are screw cap/ screwdriver release.

Features and Benefits

• Protection category PC2
• Fuse size 5 x 20mm
• Screw cap/ screw driver release
• High profile bexel
• Keyway panel cutout
• Main body Polyester, nylon cap and glass filled nylon nut
• Contacts brass, silver plated

Note

Key mount, High profile

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
