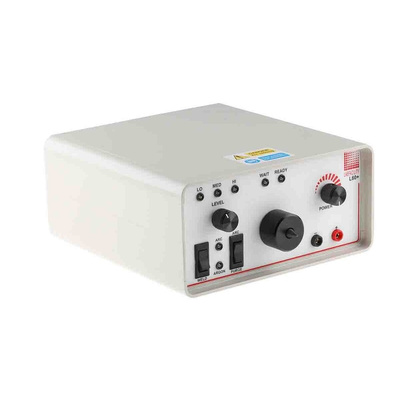

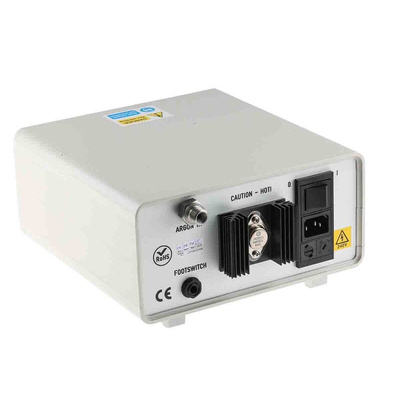

Thermocouple Fine Wire Welder
The Thermocouple Welder is a compact, simple-to-use instrument designed for thermocouple and fine wire welding
It is primarily designed for use by sensor manufacturers to produce commercial grade thermocouple junctions. It is ideal for producing large numbers of exposed junction thermocouples for test and development laboratories. The L60 Thermocouple Welder is ideally suited to transducer and RTD extension lead attachment.
Use of the Thermocouple Welder does not require special skills and most operatives will be capable of producing quality work with little practice. The instrument is supplied with a full range of user accessories including a footswitch
Suitable for use with wires of up to 1.1mm diameter an argon gas shield facility is included but a satisfactory thermocouple junction is produced without the need for argon. The output energy of the L60 Thermocouple Welder can be varied up to 60 Joules.
Designed for production of commercial grade thermocouple junctions
For users of large numbers of exposed junction thermocouples
Used in other applications involving the joining of wires to each other and to metal surfaces
No special skills are needed for production of quality work
Suitable for welding wires up to 1.1mm diameter
Argon gas shield facility
Kit consisting of a footswitch for convenient operation, and a pack of 5 spare electrodes is included
Also suitable for other fine wire work

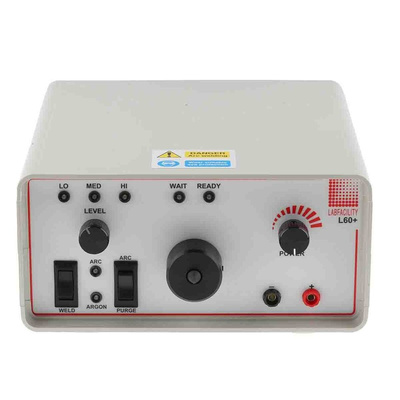

Front panel or footswitch operation
Spare Carbon Electrodes (x5) for 1.1mm 250V Fine Wire Welder are also available to buy seperately.
See stock number 814-0184.
|Energy output||0-60 joules|
|Welding capacity||Wires up to 1.1mm diameter|
|Duty cycle||Min. 5-10 welds/min.|
|Physical dimensions||200mm wide x 120mm high x 250mm depth|
|Power supply||110-120V ac or 220-250V ac, 50-60Hz|
|Power consumption||Max. 170VA dropping to 20VA during charging|
Wire Holding Pliers & Lead
Spare 2A Fuse
Footswitch for greater ease of use
Declaration of Conformity
L60 Thermocouple Welder Data Sheet
