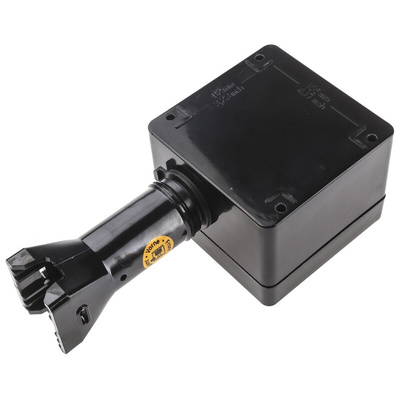

JBS-100, Raychem Trace Heating Junction Box 122mm x 120mm x 90mm, -50 → +40 °C

Raychem® Single-Entry Power Connection with Junction Box

Suitable for BTV/XTV heating cables in hazardous/non-hazardous areas
The kit integrates the functions of connection kit, insulation entry kit and support bracket
Heating cable is fully protected
Fast and easy to install
Cold applied, no need for heat guns
Cage clamp terminal for fast installation
Internal earth continuity plate
Kit contains all necessary materials for complete connection (excluding pipe strap)
2 Types of kit are available: JBM-100-EP multiple entry power connection to connect power to 3 heating cables, and the JBS-100-EP single entry power connection designed to connect a single heating cable
An E-150-E end seal kit is required to terminate each cable (see stock no. 380-9951)

Certificate No.

PTB 98 ATEX 1021 U

Group and Category

II 2 G EEx e II

Approvals

II 2G EEx e II

Standards

EN 50014; EN 50019

Supplied with
type":"Supplied with",

7777

Power Connection
