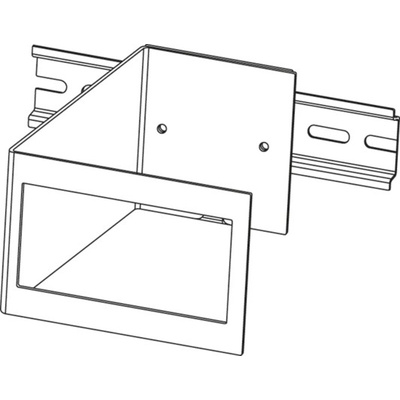

Jumo Temperature Control Adapter, IP65, For Use With 1/8 DIN

3868562
Цена за шт.
1855.50 руб. *
Stock Number: 386-8562
Номер производителя: Haltebügel für Hutschiene 96mm x 48mm
Производитель: Jumo

Срок поставки: 4-6 недель со склада из Европы

+

* Цена с НДС справочная в г. Екатеринбурге. В счете возможно увеличение цены на стоимость доставки и сертификации.

iTron - compact controller

Range of freely programmable, compact controllers with a new design and a total of five different formats
Depending on the design, 10 or 20 mm high 7-digit display for displaying actual and setpoint values or for dialogue operation
Only three keys needed to configure
Parameter setting is dynamic, and the value is automatically accepted after two seconds without operation
The usual input signals and controller structures are programmable
Common featuresStructured operation and programming scheme
Freely configurable actual value input
Two setpoint values
One binary input
Two switching outputs
Field-proven self-optimisation
K/min or K/h ramp function
Keyboard and level locking
Front side protection type IP65, rear side IP20
AccessoriesSet-up program (for Windows 98/ME/NT4.0/2000/XP) incl. PC interface

Actual-value input:
for resistance thermometers Pt100, Pt1000, KTY11-6
Thermocouples type L, J, U, T, K, N, S, R, B
current 0 mA → 20 mA, 4 mA → 20 mA
voltage 0 V → 10 V, 2 V → 10 V
binary input:
via floating contact
in the case of type 702042/43/44 always,
For type 702040/41 configurable as alternative to output 2
Output 1:
Relay (normally open), switching capability 3 A / 250 VAC with resistive load
Two-position controller (inverse/direct) or three-position controller (inverse/direct) or limit comparator (lk 1 → 8) functions configurable
Output 2:
in case of type 702042 / 43 / 44 relay (normally open) switching capability 3 A / 250 VAC with resistive load and
parallel logic 0 / 5 V / 20 mA, Rload 250 Ω
For type 702040 / 41 logic 0 / 5 V 20 mA, Rload 250 Ω configurable as alternative to binary input
Two-position controller (inverse/direct) or three-position controller (inverse/direct) or limit comparator (lk 1 → 8) functions configurable
General controller values
Messkreisüberwachung: the outputs assume a defined state
Data security: EEPROM
Power supply: 110 → 240 VAC, 48 → 63 Hz
Power consumption: max. 5 VA
Electrical connection: at rear via plug-in screw terminals
Ambient/storage temp. 0 °C → 55 °C / -40 °C → +70 °C
Housing dimensions: 48 x 24 48 x 48 48 x 96 (high) 96 x 48 (across) 96 x 96
Mounting depth: 100 100 100 70 70
Panel cut-out: 45 x 22.2 45 x 45 45 x 92 92 x 45 92 x 92
JUMO Controllers

Техническая спецификация
pdfMicroprocessor Controller Data Sheet
pdfDIN rail mounting frame Data Sheet

IP рейтинг:
IP65
Для использования с размерами:
1/8 DIN
