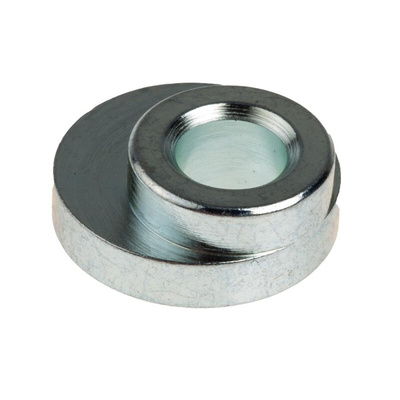

Baumer IVO Z119.006 Eccentric Fixing

4091426
Цена за шт.
491.30 руб. *

Срок поставки: 4-6 недель

Stock Number: 409-1426
Номер производителя: Z119.006
Производитель: Baumer IVO
+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Universal incremental coders Ø 58, type GI355 and GI356

The coder can be powered by a wide supply range of between 4.75 and 30 Vdc.
Universal output stage, compatible with Totem pole, NPN or PNP and RS422 or TTL line transmitter.
Resolution up to 10,000 pulses / turn.
A, B, Top zero and complemented output signals
Standard flange with 10 mm (GI355) axis or synchro flange with 6 mm (GI356) axis (See RS 481-7212.)
Front fixing by screws or bracket support (optional).
Connection via supplied radial connector.
Shielded cable connected to the connector available as an option.
Small coders, efficient and robust.
Application: robotics, metal or wood working, paper, textiles, packaging machinery, etc.

Operating voltage: 4.75 → 30 Vdc
Consumption: 30 mA @ 24 Vdc.
Frequency: Max. 300 kHz.
Rotation speed: 10,000 rpm max.
Moment of inertia: 1.45 x 10-6 kgm²
Axial load: 50 N
Radial load: 60 N
Vibrations: IEC68 16 → 2000 Hz ≤100 m/s²
Impact: IEC68 ≤1000 m/s² (4 ms)
Output stage: Totem pole, NPN or PNP, if the coder is
supplied at 10 → 30 Vdc, or
RS422 or TTL Line transmitter if the coder is supplied at 5 Vdc
High level ≥ U supply ‒ 2 V for I = 20 mA
Low level ≤ 0.5 V for I = 20 mA
Axis length: GI355 = 20 mm, GI356 = 9 mm
Operating temperature: -25° → 100 °C
Relative humidity: 95%
Protection index: IP 64
Dimensions without the axis (mm): Ø 58, depth 50 mm
Weight: 250 g
Kubler

Push pull interface with inverted signals
Short circuit protection
Age and temperature compensation

Техническая спецификация
pdfEQUERRE DE FIXATION
pdfDatasheet

Для использования с:
G0356, GA211, GA240, GA241, GBA2W, GBAMW, GBMMW, GBP5W, GI356, GI357, GM400, GM401, GPI0W, GXA1W, GXAMW, GXL2W, GXM7W, GXMMW, GXN1W, GXP1W, GXP2W, GXP5W, GXP6W, GXP8W
Тип аксессуара:
Eccentric Fixing
