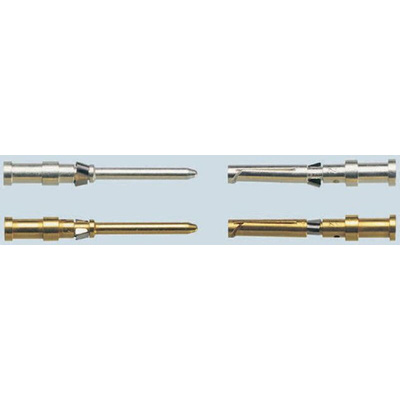

13.1636, Epic Contact H-D Female 10A Crimp Contact for use with Heavy Duty Power Connector

4180699
Номер производителя: 13.1636Производитель: Epic Contact
Цена за шт. (норма упаковки 10 шт)
210.00 руб. (С НДС) *
Количество 10+
Цена 210.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Crimp Contacts, H-D and H-DD and Tooling

Machined precious-metal plated copper alloy crimp contacts snap into plug and socket inserts.Wire acceptance 0.5 to 2.5mm²

Note

Alternative crimp tool see stock no. 266-6860. The posistioner used with this alternative crimp tool is listed in the table (stock no. 266-6882).

Standards

VDE 0110//72, 0110b, 79, VDE 0627//86

Warning

Connectors should not be coupled and decoupled under electrical load. Connectors of the same or different series being mounted side by side may be protected against incorrect mating by the use of coding options.

Approvals

SEV, UL, CSA

H-D & H-DD

Assembled connectors are type tested to 10A 250V a.c. and include the following features:

High density contact loading gives more power and control connections in smaller shell sizes
Machined contacts available to provide reliable interconnection and serviceability. Order contacts separately
HD contacts are terminated simply and effectively using a quality 8 point indent crimp tool
Coupled connectors have protection rating of IP65
Plug and socket inserts are interchangeable and a separate earth connection is made through all inserts. The earth is connected to metal body shells

Техническая спецификация
pdfEPIC CONTOOL - Kontakte und Werkzeuge / Contacts and Tools / Contacts et Outillage
Для использования с:
Heavy Duty Power Connector
Номинал тока:
10A
Номинальное напряжение:
250 В перем. тока
Род:
Female
Серия:
H-D
Тип аксессуара:
Обжимной контакт
