1781720000, Weidmüller Weidmuller, WDU, 800 V Standard Din Rail Terminal, Screw Termination

Terminal Kits

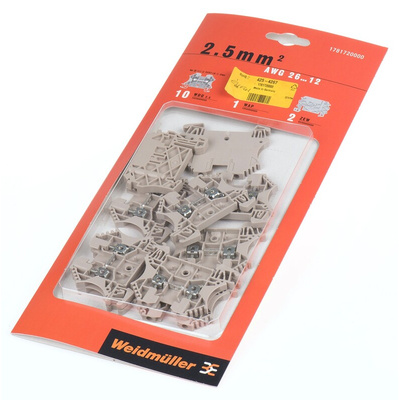

Kit 1 – qty 10 of stock no.425-190,Kit 2 – qty 10 of stock no. 425-207,Kit 3 – qty 10 of stock no. 425-213,Kit 4 – qty 10 of stock no. 425-229. 425-4295 contains 5 terminals, an end plate and 2 end stops.

Convenient kits available containing single size WDU terminals in sizes 2.5mm, 4mm, 6mm, and 10mm

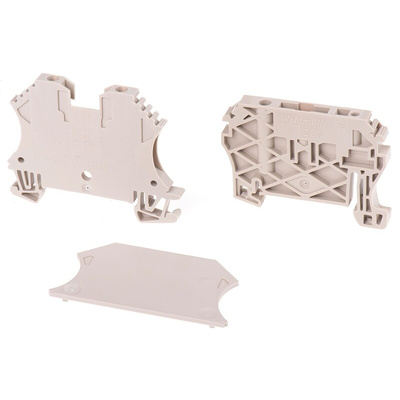

An end plate (stock no. 425-291)and two end stops (stock no. 295-9140) are also included in each kit
Voltage rating 800V

Note

RS Stock 425-4267 - is a Terminal Kit of 13 pieces

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

Approvals

CSA Certified; UL Listed; SEV; DEMKO; SEMKO; NEMKO; Lloyds Register of Shipping; SETI; KEMA; Reg of USSR; EEx’e; EEx’I’ Acceptance

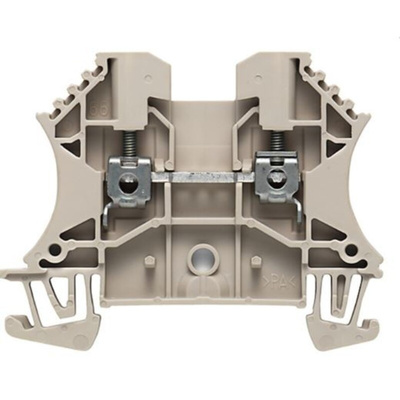

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
