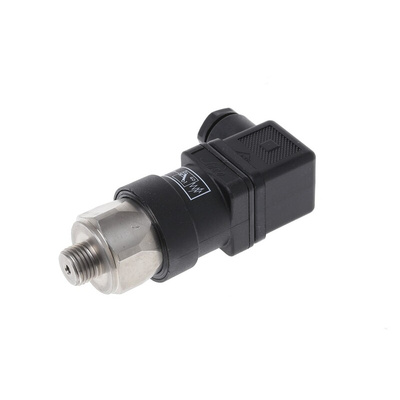

0184459031-SS, Suco Pressure Sensor for Various Media , 50bar Max Pressure Reading Relay, Датчик давления

4488117
Номер производителя: 0184459031-SSПроизводитель: Suco
Цена за шт.
33213.00 руб. (С НДС) *
Количество 5+
Цена 32184.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

G1/4 Stainless Steel Industrial Pressure Switch

Stainless steel bodied versions of the G1/4 Industrial Pressure Switches
Diaphragm operated adjustable range pressure switches with type 303 stainless steel bodies
240V 4A changeover contacts
DIN 43650 standard connector
Protection rating: IP65
Suitable Media: Air; Hydraulic Oil; Engine Oil; Heating Oil; Turpentine

Note

Adjustment of the pressure switch can be made with a 2.5mm screwdriver. To make this adjustment you must remove the electrical connection block first. When making adjustments make sure that proper safety precautions are carried out. If you intend to remove the pressure switch make sure the system is entirely relieved of pressure.

Warning

Compressed air, while generally considered a safe source of energy, must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended. Take proper safety precautions when making adjustments. Relieve the system of pressure if you are going to remove the switch.

Pressure Switches

Warning

Compressed air whilst generally considered a safe source of energy must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended.

Техническая спецификация
pdf184 SS Pressure Switch Data Sheet
Измерение информации:
Air, Heating Oil, Hydraulic Fluid, Turpentine
Максимальное воздействие считывания:
50бар
Максимальный ток:
4 A
Материал корпуса:
Нержавеющая сталь
Минимальное воздействие считывания:
10бар
Напряжение питания:
250 В
Рабочая температура - максимальная:
+100°C
Рабочая температура - минимальная:
-30°C
Серия:
0184
Соединение с процессом:
G1/4
Степень защиты IP:
IP65
Тип выхода:
Реле
Электрическое соединение:
DIN 43650 Type A
