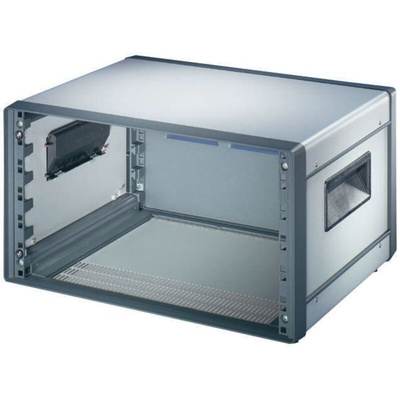

Comptec 19in. Desk Enclosures
Removable top cover
6, 7, 9U cases have a different side panel construction to accommodate heavier equipment
Shell handles can be replaced by folding handles, 50kg capacity (6, 7, 9U only)
Folding feet can be fitted instead of standard anti-skid feet anthracite grey (RAL7016)
Front/rear frames and side panels anthracite grey (RAL7016), cover and rear panels white aluminium (RAL9006)
Width 84 HP
RoHS compliant
Contents | |||
No. | Description | 3 & 4U Enclosure Supplied with (qty) |
6 & 9U Enclosure Supplied with (qty) |
1 | Front frame | 1 | 1 |
2 | Rear frame | 1 | 1 |
3 | Side cover, top | - | 2 |
4 | Side cover, bottom | - | 2 |
5 | Side cover/earth conn. | 2 | 2 |
6 | Shell handle | - | 2 |
7 | Top cover | 1 | 1 |
8 | Bottom cover | 1 | 1 |
9 | Vented rear panel | 1 | 1 |
10 | Foot, anti-skid | 4 | 4 |
11 | Assembly parts kit | 1 | 1 |
Earthing Kit and Folding Handles to be ordered separately.
StandardsInner dimensions to IEC 60297-2.
Protection: IP20 to IEC/EN 60529.
Earth connections to : DIN EN 50178/VDE 0160; DIN EN 60950/VDE 0805; DIN EN 61010 Part1/VDE 0411 Part 1.
