20630000, Werma EM 206 Yellow Incandescent, LED Beacon, 12 → 48 V ac/dc, Steady, Panel Mount, Маячок

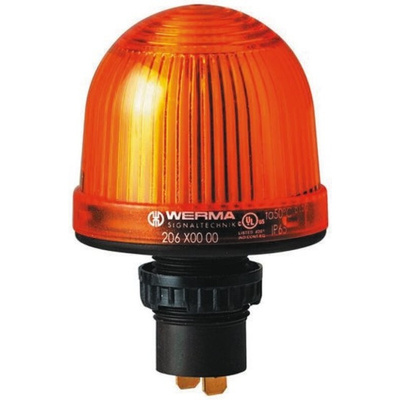

Werma Static Installation Beacon - 206 Series

The 206 Series from Werma is a static installation beacon designed for mounting in panels or enclosures and is secured using a central fastening nut. The beacons are supplied without a bulb. A 12V incandescent bulb (stock no. 328-0350) and a 24V incandescent bulb (stock no. 314-7382) are available separately. The units can also be fitted with an LED lamp if desired.

Static (permanent) beacon
Optimised illumination with 360° visibility
High protection rating IP65
PA-GF high impact housing, Ø 57 mm
Five colours available, red, green, yellow, clear or blue
Installation mounting for Ø 22.5 mm (M22 x 1.5 mm) with anti-twist device
Simple connection by means of 6.3 mm spades (faston)
Bulb change via removal of lens

Note

Bulb (B15d Watt max.) not included in assembly.

Approvals

cULus.
