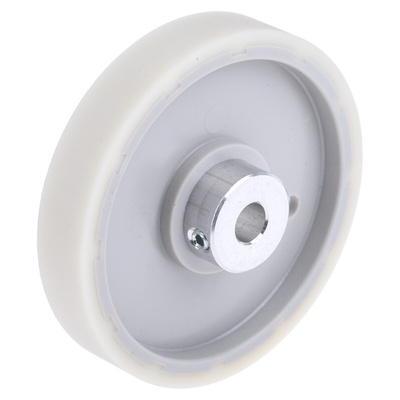

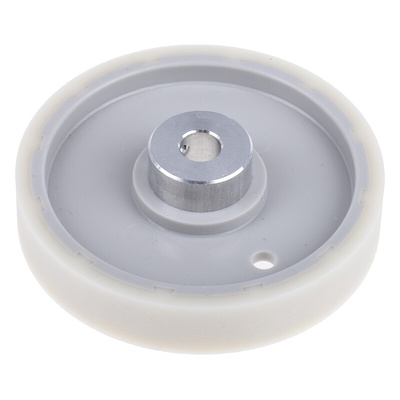

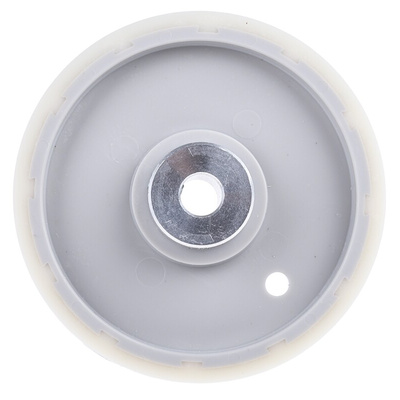

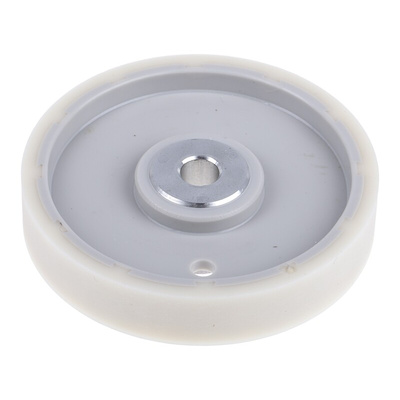

MR241.07D, Baumer IVO 20cm Plastic Encoder Measuring Wheel, 7mm Wheel Bore

4817650
Цена за шт.
4233.00 руб. *

Срок поставки: 4-6 недель

Stock Number: 481-7650
Номер производителя: MR241.07D
Производитель: Baumer IVO
+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Coder accessories

Measuring wheelsConnected to coders, these easily accommodate a movement in materials, speed of movement, etc.
Smooth synthetic, striated synthetic or striated metallic coating.
Development of 20 cm/turn or 50 cm/turn.
Mounting bracket Z 119.017For standard flange coders.
Supplied with 3 no. M3 x 12 screws and 3 lock washers to fix Ø 58 coders with a centring shoulder of Ø 36 mm.
Mounting base Z 119.015For synchro flange coders.
The coder is fitted onto the base using 3 screws and 3 eccentrics which are ordered separately using reference Z 119.018.
Eccentrics Z 119006For synchro flange coders.
3 eccentrics are needed to fit the coder.

Ref. IVO type of width weight bore
Coating
Development 20 cm
MR291.07D Striated synthetic 12 mm 135 g 7 mm
MR291.10D Striated synthetic 12 mm 135 g 10 mm
MR241.07D Smooth synthetic 12 mm 135 g 7 mm
MR241.10D Smooth synthetic 12 mm 135 g 10 mm
MR211.07A Striated metallic 12 mm 50 g 7 mm
MR211.10A Striated metallic 12 mm 50 g 10 mm
Development 50 cm
MR592.07D Striated synthetic 25mm 260 g 7 mm
MR592.10D Striated synthetic 25mm 260 g 10 mm
MR542.07D Smooth synthetic 25mm 260 g 7 mm
MR542.10D Smooth synthetic 25mm 260 g 10 mm
MR512.07A Striated metallic 25mm 340 g 7 mm
MR512.10A Striated metallic 25mm 340 g 10 mm
Kubler

Push pull interface with inverted signals
Short circuit protection
Age and temperature compensation

Техническая спецификация
pdfMeasuring Wheels Data Sheet

Материал:
Пластмасса
Окружность колес:
20см
Отверстие - размер:
7мм
Рисунок поверхности:
Smooth
Серия:
MR241
