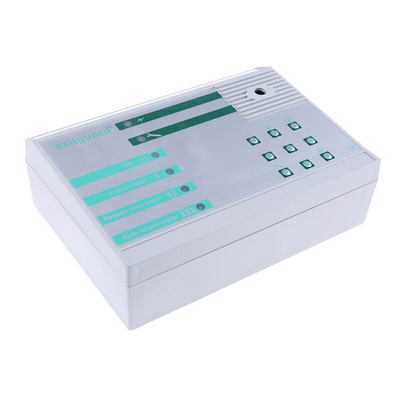

Hoyles EX206 Exitguard Alarm

Exitguard Door Alarm System Mains Powered

Exitguard is the ideal solution for security of fire exit doors. An integral high power sounder is activated when the door is opened to warn those in the vicinity that security has been breached.
EX206 is 240vac mains powered - Use where the protected door may be opened frequently or the sounder may need to sound for long periods. There is a logic output signal, a volt free relay contact for alarm condition. This version is also supplied with 6 x AA alkaline batteries for standby. The batteries will not power the alarm relay

Supply Voltage: 220/240Vac
Supply input current: < 0.5A
Battery: 6xAA Alkaline (Supplied)
Visual Indication: 1 x power LED Green
Auto reset / re-arm delays 0 - 88s
Optional door open too long delay 0-88mins
Front and back acting tamper switch
Six selectable alarm tones
Battery Condition Monitor
Battery, 12 Vdc and mains versions
Alarm strobe for visual alarm indication
Bleep in off option
High power piezo sounder
Fire door checker
Separate tamper tone
Visual alarm indication
Chime facility
Alarm relay output
Manager code
Quick reset/pass and return

Supplied with

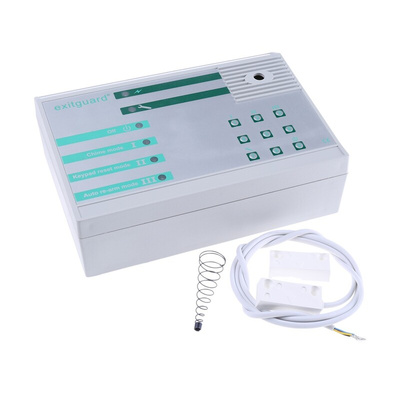

Fixings, door contact, 1 metre of cable and a door warning sign.

Exitguard Data Sheet

Exitguard EX204 EX205 EX206 Engineer Instructions

Exitguard EX200 Series Installation Instructions

Exitguard EX204 EX205 EX206 User Instructions
