Vero Technologies Test Terminal

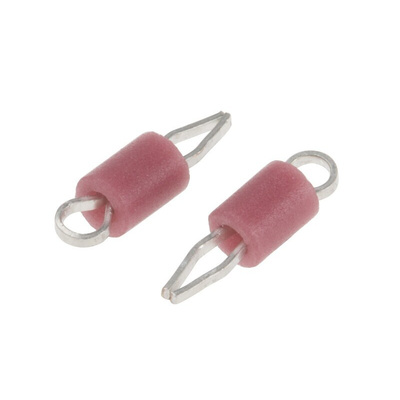

The Vero Technologies red bead terminal assembly is designed to act as a connection terminal on a printed circuit board (fixing an oscilloscope probe). The compliant pin design allows the terminal to be inserted without damaging the hole plating. The terminal is designed to stay in place even when the board is inverted for soldering. The sintered glass bead has a recommended maximum working temperature of 475°C. This exceeds all current standard temperature profile requirements. Its applications include terminal connections for data or power on plated through-hole prototype boards and as a scope probe terminal on production boards.
Features and Benefits
Hole diameter is 1.02mm for 1.6mm PCB
Body material is phosphorous bronze
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
