Easy Radio ER900TRS-02 RF Transceiver Module 868 MHz, 915 MHz, 3.3 → 5.5V, Модуль

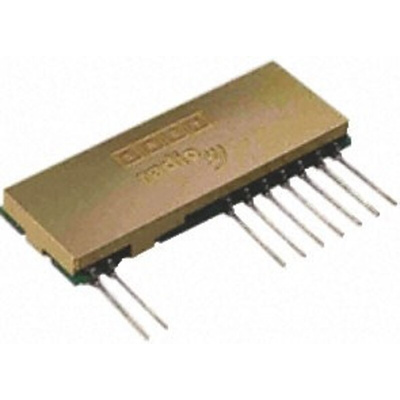

ER900TRS-02 easyRadio Transceiver Module

The ER900TRS-02 easyRadio transceiver is a complete system-on-module that combines a high performance very low power RF transceiver, a microcontroller and a voltage regulator.

RF Carrier Frequency: 869/915MHz ISM band
RF Output Power: +5dBm
Modulation: FSK
Receiver Sensitivity: -103dBm @ 19.2kbps, 0.1% BER
Range: 250m (Line-of-Sight)
OTA Data Rate: 2400 to 38400bps with Manchester encoding
Tx Buffer: 180bytes
Packet handler for Easy-Radio protocol with CRC-16 generation/checking
Customisable Easy-Radio Data ID
Programmable encryption
Repeater mode
Fast ACK feature
RSSI output
Host communication: serial UART with RTS/CTS flow control
EEPROM memory holds configuration data
Microcontroller low-voltage brown-out-detect (BOD)
Crystal frequency stability: ±10ppm
Power supply: +2.5V to +5.5Vdc
Operating temperature range: -40 to +85°C
Dimensions: 38 x 14 x 4mm
Applications: Remote sensing/control, local communication for the Internet of Things (IoT)

Approvals

ETSI
