Easy Radio ER400TS-02 RF Transmitter Module 433 MHz, 3.3 → 5.5V, Модуль

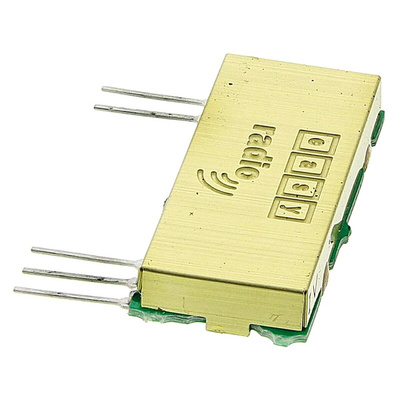

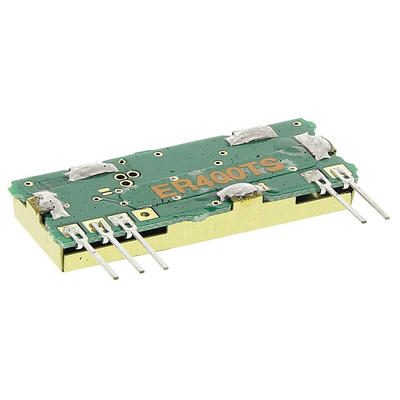

ER400TS-02 easyRadio Transmitter Module

The ER400TS-02 easyRadio transmitter is a complete system-on-module that combines a high performance very low power RF transmitter, a microcontroller and a voltage regulator.

RF Carrier Frequency: 433MHz ISM band
RF Output Power: +5dBm
Modulation: FSK
Range: 250m (Line-of-Sight)
OTA Data Rate: 2400 to 38400bps with Manchester encoding
Tx Buffer: 180bytes
Packet handler for Easy-Radio protocol with CRC-16 generation
Customisable Easy-Radio Data ID
Programmable encryption
RSSI output
Host communication: serial UART with RTS/CTS flow control
EEPROM memory holds configuration data
Microcontroller low-voltage brown-out-detect (BOD)
Crystal frequency stability: ±10ppm
Power supply: +2.5V to +5.5Vdc
Operating temperature range: -40 to +85°C
Dimensions: 38 x 14 x 4mm
Applications: Remote sensing/control, local communication for the Internet of Things (IoT)

Standards

ETS 300 220-3

Approvals

ETSI
