Easy Radio ER400RS-02 RF Receiver Module 433 MHz, 3.3 → 5.5V, Модуль

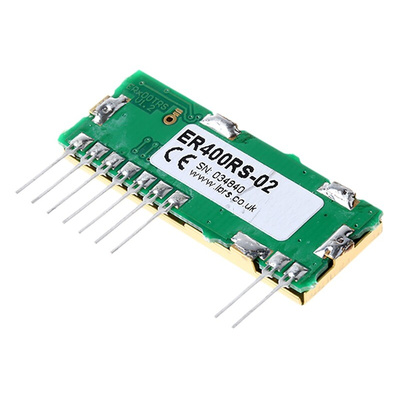

ER400RS-02 easyRadio Receiver Module

The ER400RS-02 easyRadio receiver is a complete system-on-module that combines a high performance very low power RF receiver, a microcontroller and a voltage regulator.

RF Carrier Frequency: 433MHz ISM band
Modulation: FSK
Receiver Sensitivity: -103dBm @ 19.2kbps, 0.1% BER
OTA Data Rate: 2400 to 38400bps with Manchester encoding
Rx Buffer: 180bytes
Packet handler for Easy-Radio protocol with CRC-16 checking
RSSI output
Host communication: serial UART with RTS/CTS flow control
EEPROM memory holds configuration data
Microcontroller low-voltage brown-out-detect (BOD)
Crystal frequency stability: ±10ppm
Power supply: +2.5V to +5.5Vdc
Operating temperature range: -40 to +85°C
Dimensions: 38 x 14 x 4mm
Applications: Remote sensing/control, local communication for the Internet of Things (IoT)

Approvals

ETSI

Wireless Modules - Low Power Radio Solutions

Datasheet
