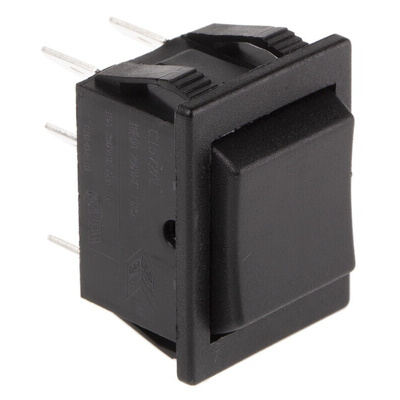

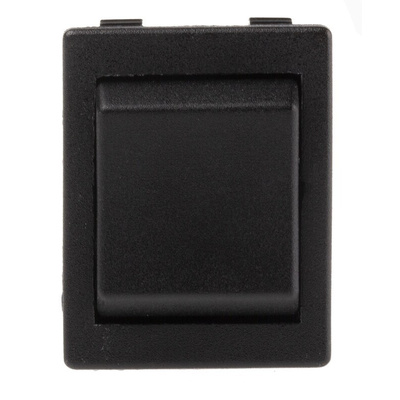

C1572ALAAA, Arcolectric Double Pole Double Throw (DPDT), (On)-Off-(On) Rocker Switch Panel Mount, Клавишный переключатель

5332964
Номер производителя: C1572ALAAAПроизводитель: Arcolectric
Цена за шт.
2388.00 руб. (С НДС) *
Количество 25+ 50+ 100+ 250+
Цена 2217.00 руб. 2076.00 руб. 1947.00 руб. 1836.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Euro Cut Out

A range of panel mount rocker switches designed for 30 x 22.1 and 30 x 11 Euro cut-outs. With a choice of red or green illumination or standard non-illuminated black actuators, the Euro cut-out rocker switches are suitable for a wide range of applications. The snap-in switches are available with latching or momentary operation and can be single or double pole configured, depending on the application. The robust rocker switches are ideal for repair and new design work.

Features and Benefits

• Red or green illumination
• High Inrush option (C1353)
• SPST, SPDT, DPST and DPDT switch configurations
• Snap-in plastic prongs on the switch sides for secure panel retention
• Connection via quick connect 0.250” (6.35 mm) faston terminals
• Easy to operate the smooth rocker actuator
• Silver alloy contacts

Typical applications for rocker switches

Rockers, due to their simple design are one of the most frequently used electrical switches used in the market today. Easy to use, rockers switches are found in all areas of domestic and industrial environments. Some of the most common are:

• Medical and laboratory equipment
• Domestic appliances
• Audio and video equipment
• Power supplies
• Computers and peripherals

FAQ

Are the rocker switches easy to connect?
Yes, as the rocker switches have male quick connect 0.250 in (6.35 mm) tab terminals at the rear connection is easy. Simply select the appropriate red, yellow or blue female receptacle crimp connectors according to wire size required.

Note

Supply voltage for illuminated switches is 230Vac

Approvals

ENEC; UL; CSA

Approvals

ENEC, UL recognised component, CSA certified

Техническая спецификация
pdfDatasheet
Высота выреза в панели:
30мм
Конфигурация контактов:
Double Pole Double Throw (DPDT)
Номинальный ток контакта:
16 A
Освещенный:
Нет
Переменный ток - номинальное напряжение:
125 В, 250 В
Работа выключателя:
(On)-Off-(On)
Размеры выреза в панели:
30 x 22мм
Тип клеммы:
Быстрое соединение
Тип монтажа:
Крепление на панель
Форма актуатора:
Прямоугольный
Цвет привода:
Черный
Ширина выреза в панели:
22мм
