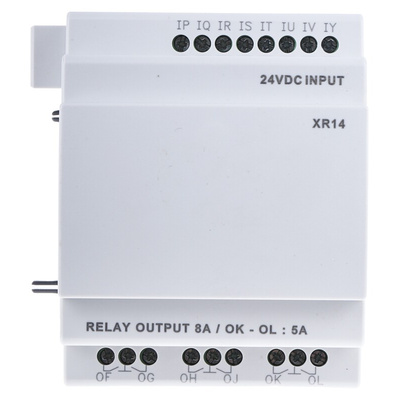

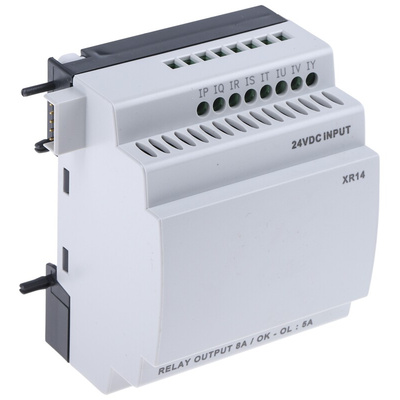

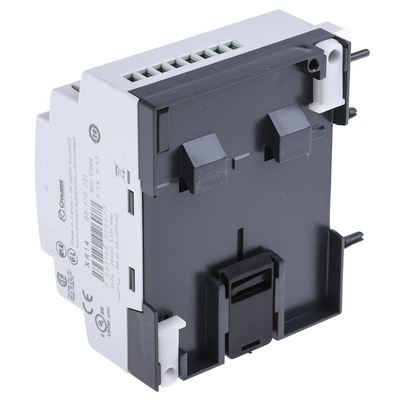

88970231, Crouzet Millenium 3 Expansion Module, 24 V dc Relay, 8 x Input, 6 x Output Without Display, Логический модуль

5369102
Номер производителя: 88970231Производитель: Crouzet
Цена за шт.
31407.00 руб. (С НДС) *
Количество 5+ 10+ 25+ 50+
Цена 29838.00 руб. 28266.00 руб. 26697.00 руб. 25125.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Crouzet Logic Module

The Crouzet Millenium 3 series logic module is the latest generation of the Millenium extendable version XR14 series with 8 digital inputs, 4 relay outputs of 8A contact current rating, and 2 relay outputs of 5A contact current rating. The Crouzet Millenium 3 series logic module is the latest generation of the Millenium series with 8 inputs and 6 outputs. This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a voltage rating of 24VDC.
Crouzet Millenium 3:
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming.

Features and Benefits

Operating temperature ranges between -20°C and +55°C
Efficient and economical version, without display or keys setting
Battery backup
Choice of ladder or function block programming
Serial, USB port communication
Protects program
Selective configuration
Memory back-up using EEPROM
ESD protected
Expandable controller
LCD Display

Applications

Automatic washing equipment
Agricultural machinery
Managing air conditioning
Heating systems

Certifications

CE

Техническая спецификация
pdfDatasheet
Выходной ток:
8 A
Глубина:
70мм
Длина:
107.6мм
Для использования с:
Millenium 3 Серия
Количество входов:
8
Количество выходов:
6
Количество коммуникационных портов:
2
Рабочая температура - максимальная:
+55°C
Рабочая температура - минимальная:
-20°C
Размеры:
107.6 x 72 x 70 mm
Тип входа:
Цифровой
Тип выхода:
Реле
Тип коммуникационного порта:
Serial, USB
Тип монтажа:
DIN Rail
Ширина:
72мм
