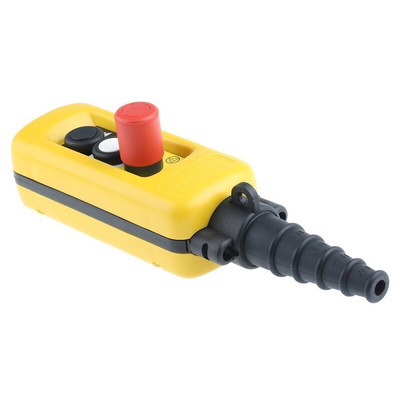

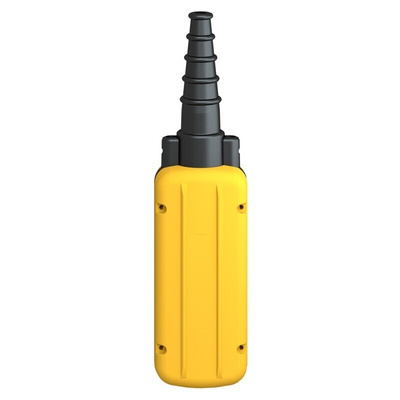

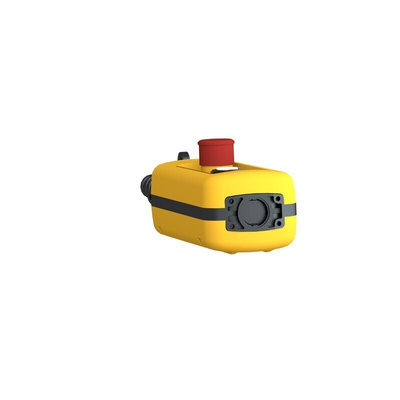

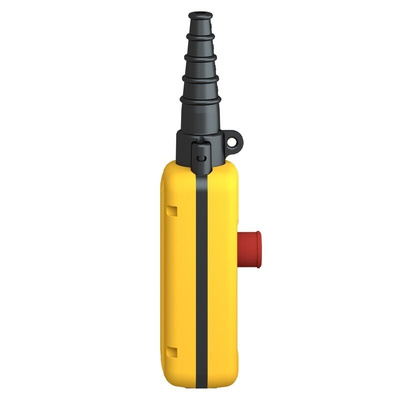

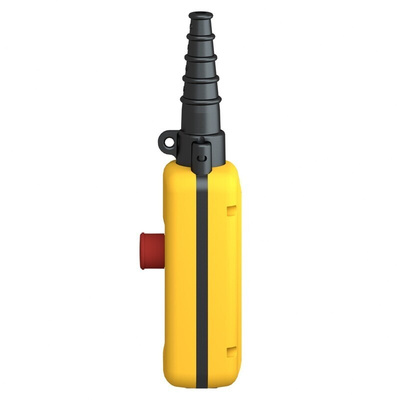

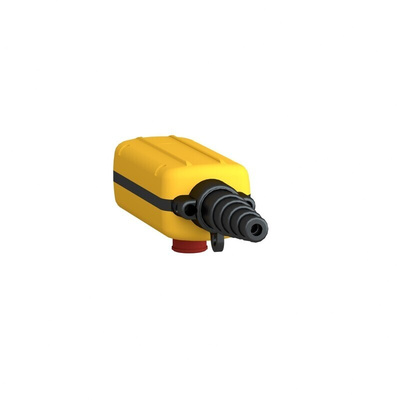

Schneider Electric Push Button Pendant Station - XACA2913

Created and designed for predominantly crane applications, Schneider Electrics push-button pendant station provides a covering case for the internal push button. This unit is a simple yet effective mechanical switch which is commonly used to control one function within a machine or device.

Common Applications of a Push Button Pendants Station

Due to the nature of the component and its capability of controlling a certain piece of machinery from a distance, users will commonly find push button pendant stations being used within an industrial environment for machines such as cranes that hoist overhead and similar types of machinery.

Features & Benefits

• Option to be fitted according to the needs of the machinery


• Additional safety features which meet the requirements of EN60204-1


• Pre-assembled for common crane applications


• Features a key release and trigger-action mushroom-headed emergency stop push-button which meets the requirements of EN418


• Actuates dual circuit redundancy to meet categories 3 and 4 of EN954-1


• Signalling option, if desired


• Six and eight-way pendants have an "ON" pushbutton


• Forms part of the Harmony XAC range


• With mechanical interlocking


• Second push-button - 1 NC + 2 NO lower, slow-fast


• First push-button - 1 NC + 2 NO raise, slow-fast


• Stop push-button - Ø 30 mm 1 NC, latching


• Comprised of a long-lasting and hard-wearing material, yellow in colour, offering an aesthetically pleasing finish


• Sometimes referred to as a pendant control station, this pendant station has an IP65 rating which conforms to IEC 60529

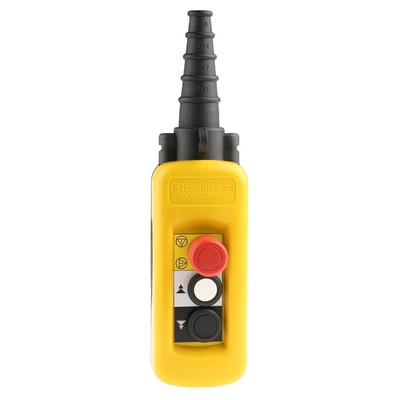

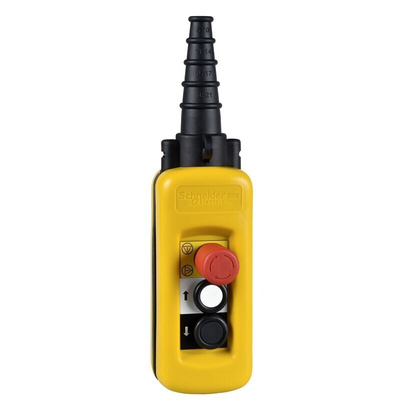

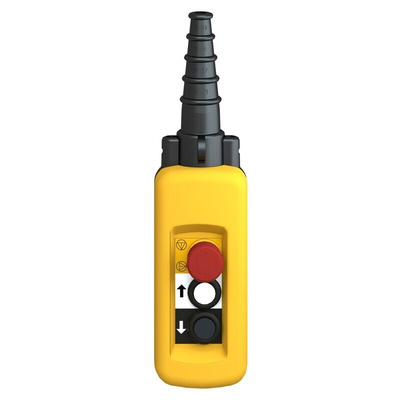

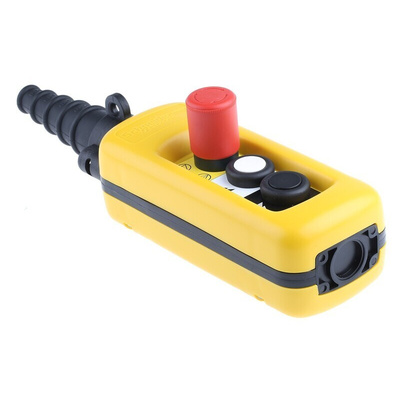

• The pendant control stations composition is 2 push buttons and 1 emergency stop
