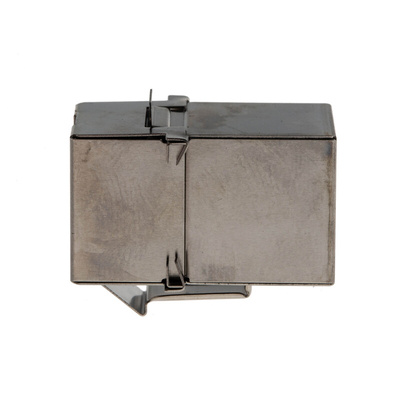

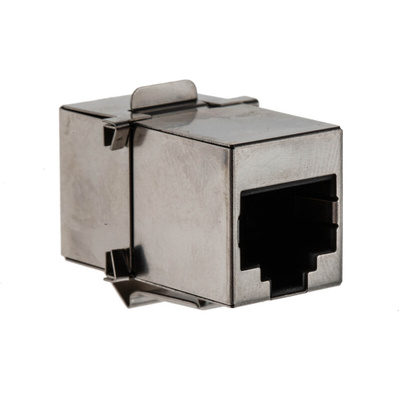

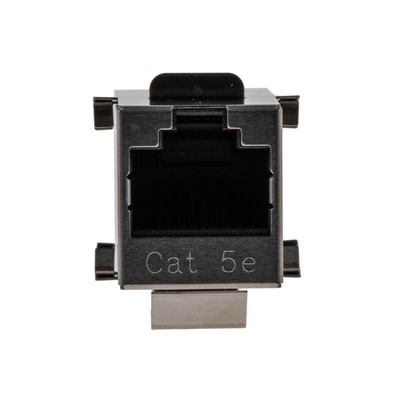

1689064, Phoenix Contact, VS-08-BU-RJ45/BU Cat5e RJ45 Modular Coupler, 1 Port, Shielded

Phoenix Contact VARIOSUB RJ45 sockets

The phoenix contact VARIOSUB RJ45 range is the first RJ45 connector that can be used without tools.
These products use QUICKON self-stripping connection technology. The cable is easily inserted into the connector and is held against the terminal blade by a locking nut. This technology is reliable and highly resistant to the impacts and vibration frequently encountered in industrial environments. These components feature a push-pull latching mechanism for handling without the use of tools, which ensures that the coupling is securely held in place.

Features & Benefits

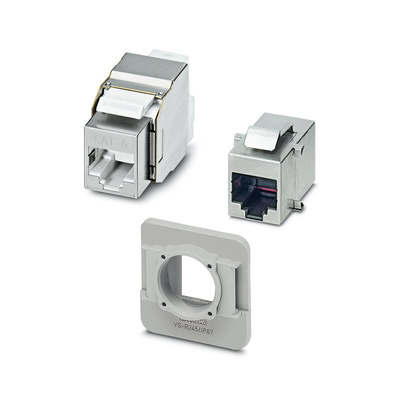

• All components required to create a RJ45 data socket for industrial applications.
• The RJ45 8-channel coupler models are designed for panel feed-through using mounting frames.
• They are available for Category 5 or Category 6.
• The mounting frame receives the coupler module.
• The seal supplied guarantees an IP67 protection index between the frame and the board.
• Features a frame cover for board mounting to ensure sealing when the socket module is not used.

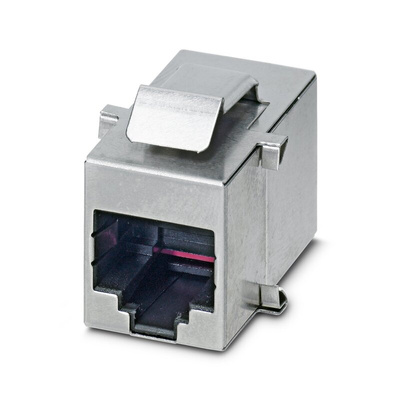

VS-08-BU-RJ45/BU

Phoenix Contact RJ45 coupling is designed to be integrated into the RJ45 panel mounting frame.
The CAT5, IP20 fibreglass coupling has 8 positions and gives a transmission speed of up to 1000 Mbps.

Datasheet 1689064
