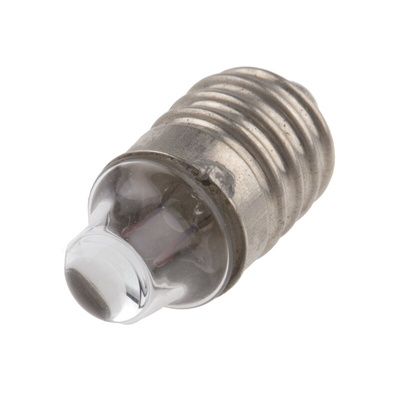

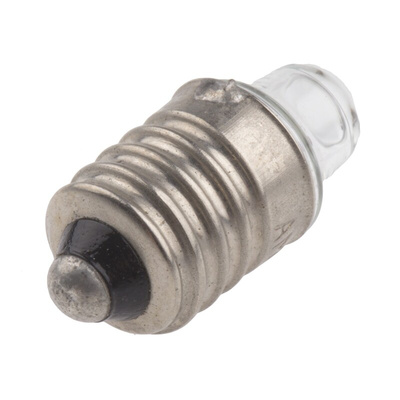

RS PRO E10 Indicator Light, Clear, 1.2 V, 220 mA, 30h, Лампа накаливания

6559075
Производитель: RS PRO
Цена за шт.
357.00 руб. (С НДС) *
Количество 50+ 100+ 250+ 500+
Цена 306.00 руб. 264.00 руб. 213.00 руб. 162.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

E10 Lens End (Teat Type) MES

Ideal for applications where a narrow beam of light is required

Torch Lamps

Filament lamps will perform to specification and give optimum life when: they are powered at the rated voltage from a stabilised 50Hz ac supply; the ambient temperature is in the range +20°C to +25°C; and no mechanical vibration is present.

Deviations from these criteria can have a significant effect on lamp life, particularly with low current filaments (<80 mA).

Operation from a dc. supply at rated voltage can reduce specified life by up to 50%.

The effect of variation from the rated operating voltage should be noted: 5% above will reduce lamp life by up to 50%; and 5% below will significantly increase lamp life.

Current consumption can vary by up to ±10% on stated values at rated supply voltage. Care therefore should be exercised when running a number of lamps in series. In such applications it is recommended that the rated voltage be reduced by 10% to prevent premature failure of individual lamps.

Conversion of light output units: Lumens = MSCP x 12.6, MSCP = Lumens / 12.6.

Техническая спецификация
pdfRS Pro Datasheet
Диаметр:
10мм
Длина:
25 мм
Номинал тока:
220 мА
Номинальное напряжение:
1.2 В
Светимость:
2 лм
Срок службы, часов:
30ч
Цвет линзы:
Светлый
Цоколь:
E10
