6ES7972-0BA12-0XA0, Siemens 9 Way Right Angle Cable Mount D-sub Connector, Разъем

6623788
Номер производителя: 6ES7972-0BA12-0XA0Производитель: Siemens
Цена за шт.
14544.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Simatic DP, RS-485 right angle adapter

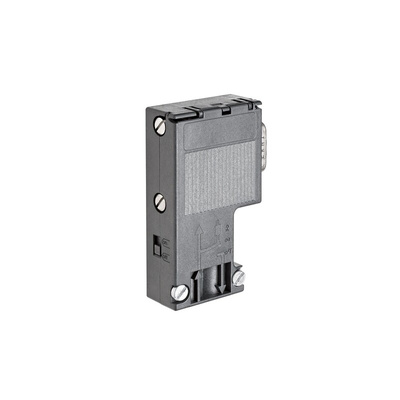

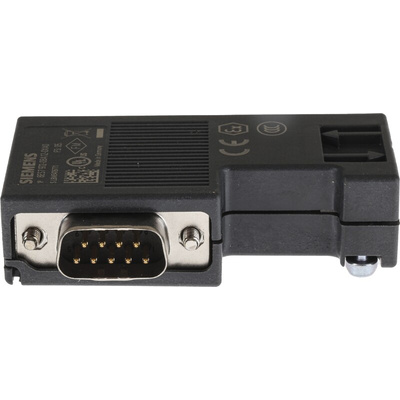

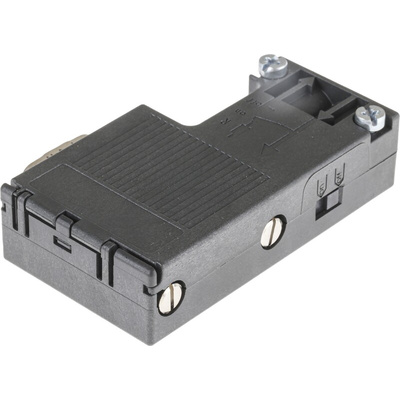

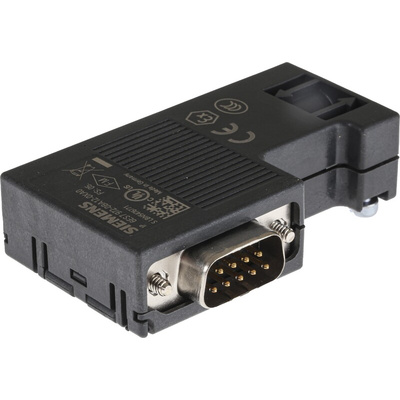

The 6ES7972-0BA12-0XA0 is a right-angle, RS 485 adapter designed to be used to connect PROFIBUS nodes to PROFIBUS bus cables. This module transfers data from 9.6Kb/s up to 12 Mb/s. This PROFIBUS connector can connect up-to 2 PROFIBUS cables and features an integrated resistor combination that can be selected with a slide switch.

Features and Benefits:

  • Up-to 12 Mb/s transmission speed

  • Hard plastic case

  • IP20 rating

  • 0°C to +60°C operating temperatures

  • 90° Cable outlet

Certifications:

  • RoHS Compliant

  • UL Approved

BUS connectors

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief

Техническая спецификация
pdf6ES7972-0BA12-0XA0 Datasheet
Глубина:
35.6мм
Длина:
64.0mm
Кол-во контактов:
9
Концевая заделка:
Wire Wrap
Материал корпуса:
Полимер
Ориентация корпуса:
Правый угол
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
0.0°C
Размеры:
64 x 15.8 x 35.6мм
Тип монтажа:
Кабельное крепление
Ширина:
15.8мм
