RS PRO 175mm LCD Inclinometer, Инклинометр

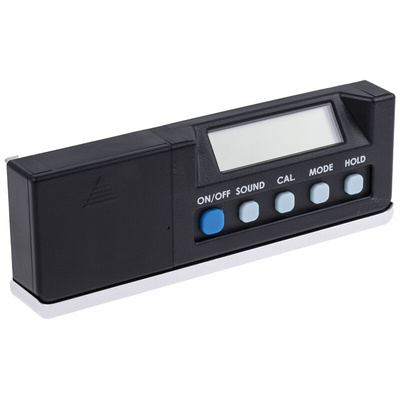

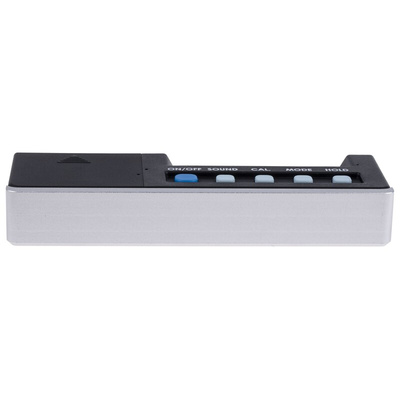

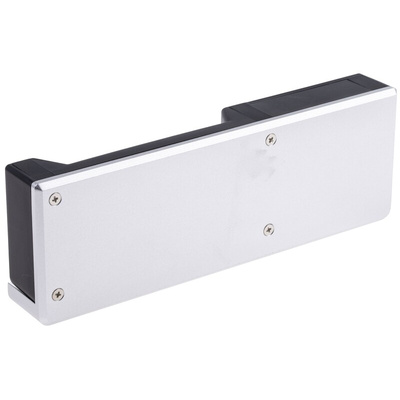

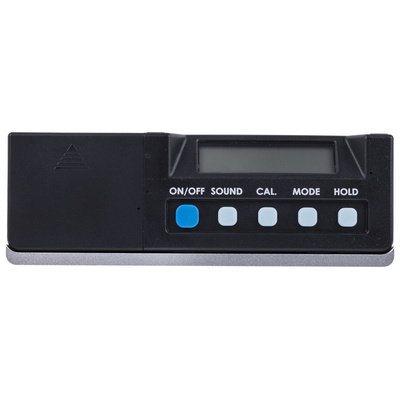

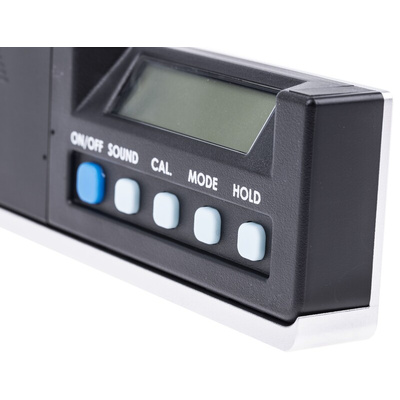

RS PRO Digital Inclinometer

RS PRO digital inclinometer which can precisely measure gradients and angles as well as ensuring horizontal and vertical surfaces are level. A digital clinometer is an ideal measuring instrument that can measure the height of tall objects which a person couldn’t possible reach for example top of buildings.

RS PRO have a great range of spirit levels (also known as bubble levels) and inclinometers which are invaluable for precision levelling measurement in a multitude of jobs.

Features and Benefits:

• Digital - quick and accurate measurement of gradient, easy to read and excellent precision in measuring and displaying inclines


• Selectable acoustic signal to indicate 0° or 90°


• Hold function – holds current reading on the display


• Choice of measurement units: degrees °, percentage %, or in/ft


• Alignment arrows – shows which direction the level needs to turn to get a satisfactory horizontal or vertical surface

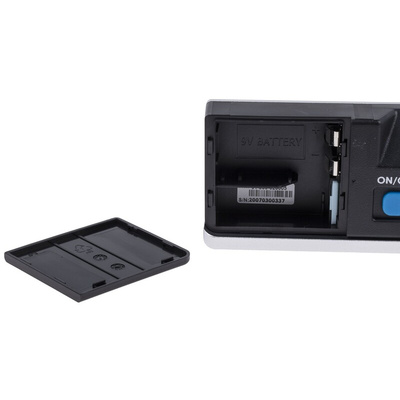

• Battery 9V - Battery not supplied, for a suitable battery see RS 826-4435


• Will switch off automatically if not used for six minutes


• Length 175 mm


• Height 54 mm


• Width 25 mm


• Sound alarm on 0°


• Accuracy 0° - 10° and 80 - 90° ± 0.1°. All other angles ± 0.2°


• Range 360° in four 90° quadrants


• Resolution 0.1°


• Low battery indicator

Typical Applications:

Spirit Levels and Inclinometers are tools designed for precision levelling measurement in a multitude of jobs, from something as simple as putting a shelf up making sure it does not slope, to checking how level bricks are in a new wall. They are commonly used by

• Carpenters
• Stonemasons
• Bricklayers
• Surveyors
• DIY Enthusiasts
