99038, Desco Europe Wrist & Foot ESD Tester, Тестер

Desco Europe Wrist Strap Footwear Tester

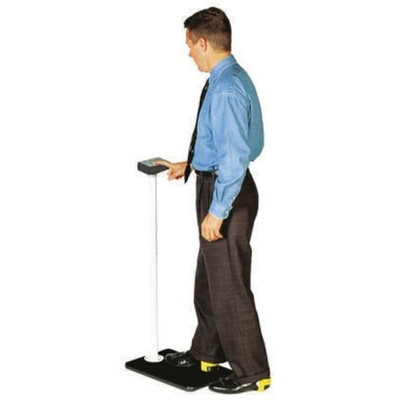

The Desco Europe Wrist Strap footwear tester equipment determines an operator’s wrist strap and footwear will function correctly. It is a 3-state touch tester designed for fast, frequent testing of ESD personnel grounding devices. The equipment includes a rocker switch, green, red and yellow light switch indicator. A rocker switch allows the operator to select a wrist strap or footwear test. A green light indicates that the wrist strap or footwear is passing. Red and yellow lights plus an audible alarm indicates when the wrist strap or footwear is failing.
Supplied with:
1 combo tester
1ft plate ground wire, 5in
1 80020 banana plug/10mm adapter
1 9V battery
1ft plate
1 pedestal
3 button head screws, 1/4-20 x 3/4in
1 Allen wrench, 5/32in
1 Flathead screw, 8-32 x 5/8in
1 Knurled nut, 8-32
1 Blackcap
1 poster
1 certificate of calibration
Note:
Once the 80020 has been put into the plug socket, it cannot be removed
Note:
Ideally suited for testing foot grounding devices

Features and Benefits

Resistance measurement accuracy is ±10%
Resistance range between <1 x 10³ohms and >1 x 10¹²ohms
Under load voltages of 10V and 100V ±5%
Electrification period of approximately 15 seconds

Applications

Electrical cabling
Factory automation
