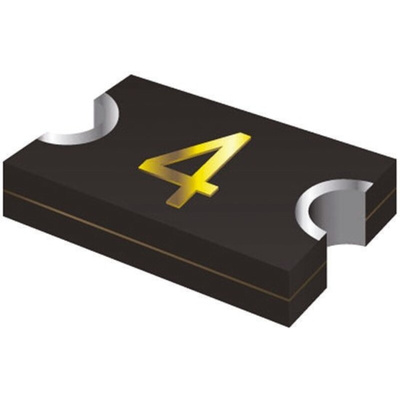

MF-PSMF010X-2, Bourns 0.1A Surface Mount Resettable Fuse, 15V, Предохранитель

6917490
Номер производителя: MF-PSMF010X-2Производитель: Bourns
Цена за шт. (норма упаковки 5 шт)
96.00 руб. (С НДС) *
Количество 5+ 50+ 100+
Цена 96.00 руб. 90.00 руб. 84.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

MF-PSMF Series

Applications include USB port protection - On the Go and 2.0, PC motherboards - Plug and Play protection, mobile phones - battery and port protection, PDAs/digital cameras, game console port protection.

Compact design to save board space - 0805 footprint
Small size results in very fast time to react to fault events
Low profile

Approvals

UL

Surface Mount Technology

Resettable fuses are designed for the protection of electrical and electronic circuits against excessive currents. They switch rapidly from a low resistance to very high resistance state under electrical overload or short circuit conditions, and feature automatic reset and return to low resistance state when fault condition ceases and power is removed.

Maintenance free automatic reset for thousands of cycles
Small size and no fuseholder required

Main applications

Security systems
Power supplies and transformers
Power switching devices
Automotive and medical equipment
Instrumentation and control
Computers and peripherals
Audio visual and telecommunications

Техническая спецификация
pdfMF-PSMF Series - PTC Resettable Fuses Data Sheet
Время движения:
1.5s
Высота:
0.85мм
Диапазон рабочих температур:
-40 → +85 °C
Длина:
2.3мм
Максимальное сопротивление:
7.5Ом
Максимальный ток:
40 A
Материал терминала:
Gold Plated Nickel
Минимальное сопротивление:
1Ом
Номинальное напряжение:
15В
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-40°C
Размер пакета:
0805
Размеры:
2.3 x 1.5 x 0.85мм
Рассеяние мощности:
0.5Вт
Удерживающий ток:
0.1A
Ширина:
1.5мм
