5311123, Ansmann, 18W Plug In Power Supply 3 V dc, 4.5 V dc, 5 V dc, 6 V dc, 7.5 V dc, 9 V dc, 12 V dc, 1.5A, Level V

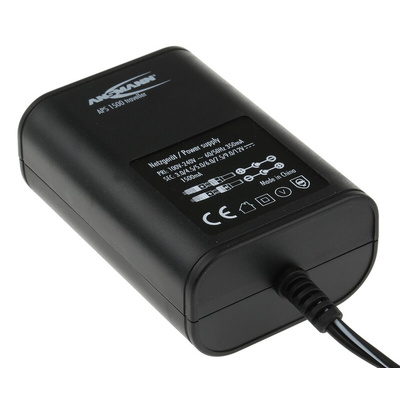

Ansmann Power Supply

The Ansmann APS1500 series plug-in power supply has a regulated output voltage within the range of 3VDC to 12VDC. This plug-top, adapter power supply has a selectable output voltage along with 7 interchangeable output connectors. It supports numerous applications due to the wide range of input (100-240V AC) that complies with the universal standard and changeable input plug for use in the UK, Europe, USA, Japan and Australia. It is ErP compliant and suitable for use with small electrical devices.
Note:
Conforms to energy-related product directive 2009/125/EC.

Features and Benefits

Output lead is 1.8m with polarity inverter and set of 7 connectors
Output power is 18W
Output current is 1500mA
Low standby power consumption is less than 0.3W

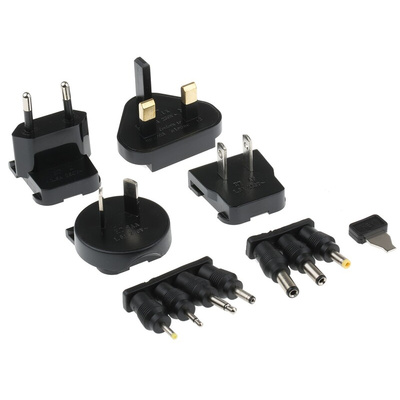

Supplied with 7 different output connectors
Regulated output voltage
short-circuit proof
Selectable output voltages via rotary switch
Double insulation

Certifications

IP40 rated
CE certified
ErP level V compliance
cBVus certified
BVGS certified

APS 1500 Traveller Universal ErP Power Supply with Selectable Output - Customer Drawing
