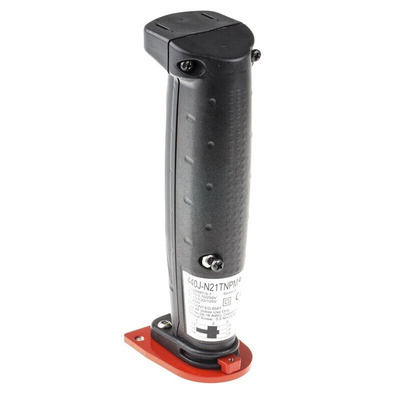

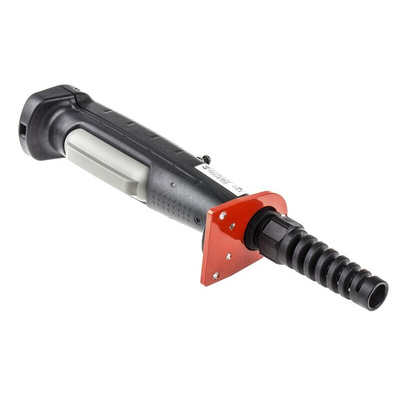

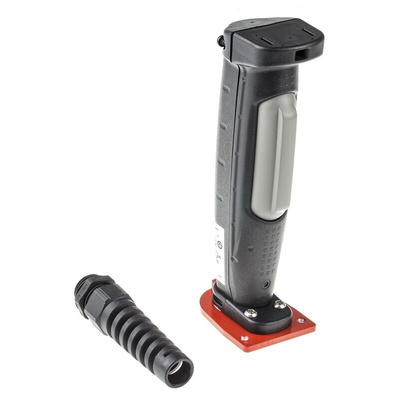

440J-N21TNPM, Allen Bradley Guardmaster 440J Series Safety Enabling Switch, 3 Position, 2 NC, IP66, Выключатель

7034921
Номер производителя: 440J-N21TNPMПроизводитель: Allen Bradley Guardmaster
Цена за шт.
64245.00 руб. (С НДС) *

Срок поставки: 7-9 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Enabling Switch, 440J Series

Hand-operated grip style enabling device. Underneath the rubber boot, called the trigger switch, the 440J enabling device has two three-position switches. The contacts are closed when the actuator is in the mid-position (partly depressed). The contacts are open when the actuator is in the rest (released) position and in the fully pressed position. When transitioning from fully pressed to released, the contacts remain open. The 440J meets the requirements of IEC 60947-5-8:2006, which was written to describe the performance and design requirements of three-position enabling devices. The model with the normally open contact is typically used as a jog or reset function. The safety system design must only allow the use of the jog or reset function when the trigger switch is in the mid-position.

2 N/C direct-opening action
Operating force; Position 2: 15 N approx., Position 3: 50 N max.
Direct opening force; 90 N
Maximum actuation frequency; 1200 operations per hour

Note

Base plate included. If operation of the switch contacts is all that is needed use the holding bracket 440J-A00N. Additional accessory brackets can be added to achieve various arrangements. The 440J-A01N right angle bracket accommodates the 440K-A11238 (standard actuator) which is used with the standard Trojan 6 or Trojan T15 and the 440G-A27011 (GD2 actuator) which is used with the GD2 interlocks. With two additional screws, the right angle bracket can be mounted to the 440J enabling switch for horizontal mounting. An actuator can also be mounted for vertical use without the 440J-A01N bracket. Mounting plate 440J-A02N has multiple pre-drilled and tapped holes to facilitate mounting of a single 440K-MT (MT-GD2) or 440K-T (Trojan) interlock. Four additional through-holes at the corners allow mounting of the plate to a flat surface. The 440J-A03N accessory mounts to the enabling switch base plate and has two sets of holes to accommodate either two standard or two GD2 actuators. This arrangement is used in conjunction with the 440K-A04N accessory. The U-shaped 440J-A04N can accommodate two interlocks: either 440K-MT or 440K-T. Using the 440J-A03N plate with dual actuators, a total of eight contacts, four in each switch, can be made available for the safety and control system.

Allen Bradley Guardmaster Safety Enabling Switch

The Allen Bradley Guardmaster safety enabling switch is a 440J series, hand-operated, grip style, enabling device. It has two 3-position switches underneath the rubber boot, called the trigger switch. The contacts of the switch are closed when the actuator is in the mid-position (partly depressed). Similarly, the contacts are open when the actuator is in the rest (released) position and in the fully pressed position. However, the contacts remain open while transitioning from fully pressed to release. The model with the normally open contact is typically used as a jog or reset function. Nevertheless, the safety system design must only allow the use of the jog or reset function when the trigger switch is in the mid-position.
It has a contact configuration of 2NC.

Note:
The base plate is included. If just the operation of the switch contacts is required, use the holding bracket 440J-A00N. Additional accessory brackets can be added to achieve various arrangements. The 440J-A01N right angle bracket accommodates the 440K-A11238 (standard actuator) that is used with the standard Trojan 6 or Trojan T15 and the 440G-A27011 (GD2 actuator) that is used with the GD2 interlocks. The right angle bracket can be mounted to the 440J enabling switch for horizontal mounting with 2 additional screws. An actuator can also be mounted for vertical use without the 440J-A01N bracket. The mounting plate 440J-A02N has multiple pre-drilled and tapped holes to facilitate mounting of a single 440K-MT (MT-GD2) or 440K-T (Trojan) interlock. 4 additional through-holes at the corners allow mounting of the plate to a flat surface. The 440J-A03N accessory mounts to the enabling switch base plate and has 2 sets of holes to accommodate either 2 standard or 2 GD2 actuators. This arrangement is used in conjunction with the 440K-A04N accessory. The U-shaped 440J-A04N can accommodate two interlocks: either 440K-MT or 440K-T. A total of 8 contacts, 4 in each switch, can be available for the safety and control system by using the 440J-A03N plate with dual actuators.

Features and Benefits

Operating force
position 2: 15N approximately, position 3: 50 N maximum
Direct opening force
90N
Maximum actuation frequency
1200 operations per hour

Certifications

IP66 Rated
IEC 60947-5-8:2006

Enabling Switch

Техническая спецификация
pdfOperator Interface Enabling Switches Overview Data Sheet
Глубина:
58мм
Длина:
260мм
Количество позиций:
3
Конфигурация контактов:
2 нКл
Материал корпуса:
Полиамид
Размеры:
260 x 46 x 58 мм
Серия:
440J
Степень защиты IP:
IP66
Ширина:
46мм
