88974161, Crouzet XD26 Logic Control - 16 Inputs, 10 Outputs, ПЛК

7048333
Номер производителя: 88974161Производитель: Crouzet
Цена за шт.
100254.00 руб. (С НДС) *
Количество 5+ 10+ 25+ 50+
Цена 95241.00 руб. 90228.00 руб. 85215.00 руб. 80889.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

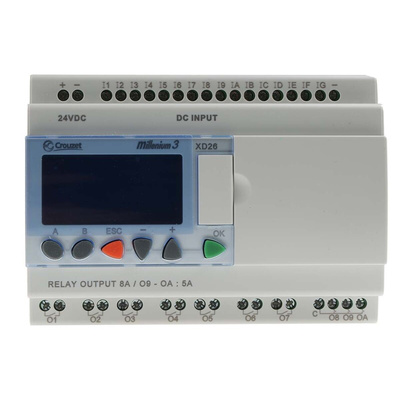

Crouzet PLC

The Crouzet Millenium 3 series logic module is the latest generation of the Millenium compact version XD26 series with 16 digital (including 6 analogues) inputs, 8 relay outputs of 8A current rating and 2 relay outputs of 5A current rating. These PLCs have modular versions, designed for application-specific functions. It is the easiest programmable module to use on the market. It enables the control and monitoring of machines and automation installations with up to 50 I/O. This product also offers both standard and customized product solutions for a range of applications, including automatic barriers, automatic doors, turnstiles, sectional doors, and disabled access ramps.
Crouzet Millenium 3
:
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming

Features and Benefits

Highly visible blue LCD with 4 lines of 18 characters and configurable backlighting
Allow the use of the entire library of specific functions blocks of the software workshop
Extended temperature ranges between -20 °C and 70 °C
Analogue inputs are potentiometer, NTC, LDR (0-20 mA/Pt100 with converters)
Open to XN network communication extensions, digital I/O, analogue, Pt100 extensions
Supported communication protocols are USB, Ethernet, and Modbus

Applications

Industrial automation
Robotics
Automobiles industry

Certifications

CE
UL listed
CSA certified
GL certified
IEC/EN 61131-2 (Open equipment)
IEC/EN 61131-2 (Zone B)
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 61000-6-4
IP40
IP20

Техническая спецификация
pdfDatasheet
Выходной ток:
(8 x 8) + (2 x 5) A
Дисплей в комплекте:
Да
Для использования с:
XD26 Серия
Используемый язык программирования:
FBD, Многоступенчатая логика, SFC
Количество входов:
16
Количество выходов:
10
Количество коммуникационных портов:
2
Производитель - серия:
XD26
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-20°C
Тип входа:
Аналоговый, Цифровой
Тип выхода:
Реле
Тип коммуникационного порта:
Serial, USB
Тип монтажа:
DIN Rail
