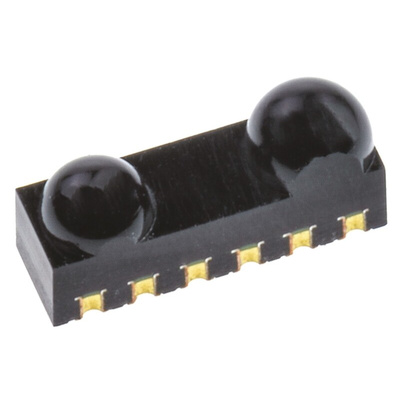

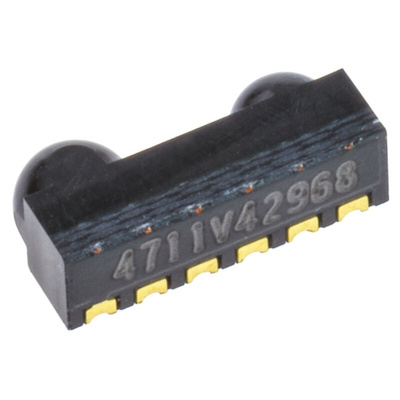

TFBS4711-TT1 Vishay, Infrared Transceiver, 900nm 115.2kbit/s, 8m Range, SMT, 6 x 3.1 x 1.9mm, Трансивер

7103850
Номер производителя: TFBS4711-TT1Производитель: Vishay
Цена за шт.
1482.00 руб. (С НДС) *
Количество 10+ 50+ 250+ 500+
Цена 1218.00 руб. 1158.00 руб. 969.00 руб. 873.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

IrDA Transceiver Modules\t

Integral metal EMI shield
Internal echo-cancel function
Suitable for reflow soldering

The TFBS4711 is a low profile, infrared data transceiver module. It supports IrDA® data rates up to 115.2 kbit/s (SIR). The transceiver module consists of a PIN photodiode, an infrared emitter (IRED), and a low-power CMOS control IC to provide a total front-end solution in a single package.
The device is designed for the low power IrDA standard with an extended range on-axis up to 1 m. The RXD output pulse width is independent of the optical input pulse width and stays always at a fixed pulse width thus making the device optimum for standard endecs. TFBS4711 has a tri-state output and is floating in shut-down mode with a weak pull-up. The shut down (SD) feature cuts current consumption to typically 10 nA.

FEATURES
• Compliant with the latest IrDA physical layer low power specification (9.6 kbit/s to 115.2 kbit/s)
• Small package (H x L x W in mm): 1.9 x 6 x 3
• Typical link distance on-axis up to 1 m

Transceivers

Техническая спецификация
pdfDatasheet
Высота:
3мм
Длина:
6мм
Количество штырьков:
6
Максимальная скорость приема данных:
115.2кбит/с
Максимальное расстояние передачи:
Пиковая длина волны излучателя:
900нм
Размеры:
6 x 3.1 x 1.9мм
Тип монтажа:
Поверхностное крепление
Тип упаковки:
Поверхностный монтаж (SMD)
Ширина:
1.9мм
