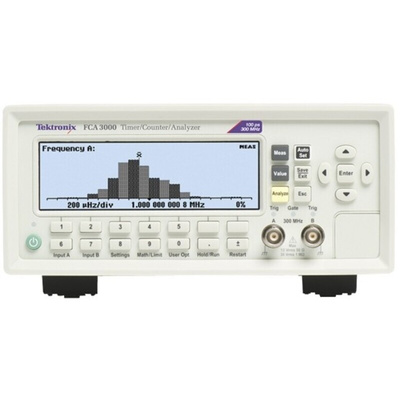

Tektronix FCA3000 Frequency Counter 300MHz, Частотомер

7121154
Номер производителя: FCA3000Производитель: Tektronix
Цена за шт.
861000.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Tektronix FCA3000 & FCA3100 Timer/Counter/Analyzers

Tektronix timer/counter/analyzers offer performance and an abundance of features at an affordable price. With a graphical display and single button analyse key, users can instantly view their measurements with histograms, trend plots or a wide choice of statistics displayed simultaneously on the display, including Allan Deviation. There is the added benefit of multi-parameter measurements from one test connection, e.g., voltage measurements included with frequency. The instruments offer very high measurement speed and connectivity for an automated test system, including a convenient USB port. Measurements can be captured into internal memory at the rate of 250k/sec, or streaming block transfers through USB/GPIB up to 15k/sec.

Graphical, multi-parameter timer/counter display
High resolution down to 50 ps single shot (time)
Measurements to 12 digits/sec (frequency)
Fast USB/GPIB bus transfer speeds
Super fast measurements (250k/s) to internal memory
Zero-dead time frequency/period measurements
Built-in statistics & math functions including on screen histogram, trend plot or Allan Deviation
GPIB operates in either SCPI/GPIB or 53131A emulation mode, for plug-n-play replacement in existing ATE systems
Seamless PC connectivity through USB with NI SignalExpress™ Software

Note

Suitable for use with TVA3000 - TimeView™ Modulation Domain Analyzer 712-1151 and with HCTEK4321 hard carrying case 613-1510

Supplied with

Quick Start User Manual (English, Chinese, Japanese), multiple language documentation CD, NI LabVIEW SignalExpress™ TE (Basic) Edition software, trial version of TimeView™ Time Domain Analysis software, power cords, calibration certificate, UK & Euro plugs ( 712-1154 & 712-1157 )

Supplied with
type":"Supplied with",

Basic Edition PC software and a trial version of TimeView™ Time Domain Analysis software

Техническая спецификация
pdfTektronix FCA3000 and FCA3100 Series Data Sheet
pdfFCA3000, FCA3100, & MCA3000 Series Timer/Counter/Analyzers - Specifications and Performance Verification
Вес:
2.7кг
Время измерения:
250ksps
Входной импеданс:
1 МОм, 50 Ом
Высота:
90мм
Длина:
395мм
Затухание:
1
Максимальная частота:
300МГц
Максимальное входное напряжение:
5 В, 50 В
Минимальная частота:
0.001 Гц
Минимальное входное напряжение:
-50 В, -5 В
Модель р:
FCA3000
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
0°C
Размеры:
395 x 210 x 90мм
Разрешение:
12 Digit
Разрешение ширины импульса:
1.6нс
Тип вилки:
Type C - European Plug, Type G - British 3-pin, Type J - Swiss 3-pin
Тип коннектора:
BNC, SMA, Type-N Female
Ширина:
210мм
