15500823, Lapp 5 Core 10 mm² Mains Power Cable, Black Polyvinyl Chloride PVC Sheath 50m, 59 A 1 kV, 600 V, NYY-J

7210730
Номер производителя: 15500823Производитель: Lapp
Цена за 1 катушку (50 метров)
240183.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Lapp Fixed Installation Power Cable - NYY-J

From Lapp, this NYY-J cable is a widely-used power and control cable that is often found in domestic and commercial electrical wiring. As well as being used in fixed installations, the cable is designed to be used for direct burial, and burial in concrete, providing the operating temperature is adhered to.

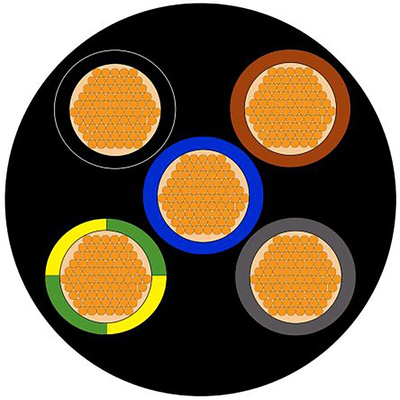

The cable is bare copper single core with PVC with a filling compounds over the core assembly. The PVC sheath is flame retardant and robust, allowing the cable to be used in dry, damp and wet interiors. NYY-J cable is also able very resistant to UV, and so is able to be used outdoors.

Features and Benefits

• Bare copper conductors
• PVC-based outer sheath
• Suitable for outdoor use
• Flame-retardant according IEC 60332-1-2
• Above, below, flush and recess routing
• Operating temperature during installation: -5°C to +50°C
• Operating temperature in a fixed installation: -40°C to +70°C

Applications

Able to be installed in open air and underground, NYY-J cable presents a versatile power cable that should be used in where the risk of mechanical damage is unlikely. As such it can be used in brickwork and concrete, proving the concrete is not shaken, vibrated or compressed. Lapp NYY-J able is often used in;

• Power stations
• Distributor boards
• Subscriber networks

Power Cable

Техническая спецификация
pdfLapp NYY Data Sheet
pdfPower cable Data Sheet
pdfCables Selection Guide
Американский размер проводов:
7 AWG
Внешний диаметр:
21мм
Встречающиеся стандарты:
Euroclass Eca
Длина:
50м
Жилы:
3.56 мм
Количество ядер:
5
Материал изоляции:
ПВХ
Материал оболочки:
Polyvinyl Chloride PVC
Материал проводника:
Голая медь
Номинал тока:
59 A
Номинальное напряжение:
1 кВ, 600 В
Площадь поперечного сечения:
10 мм²
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
+5°C
Размеры нитей:
3.56 мм
Сопротивление проводника:
1.83 Ом/км
Тип:
NYY-J
Тип проводника:
Solid
Характеристика горения:
Flame Retardant
Цвет оболочки:
Черный
