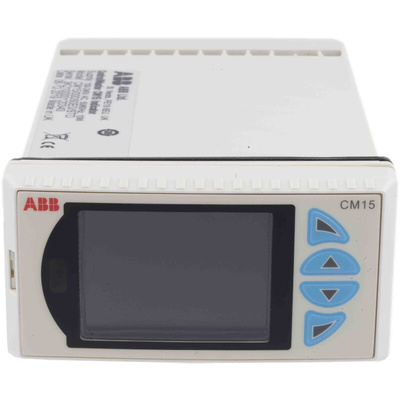

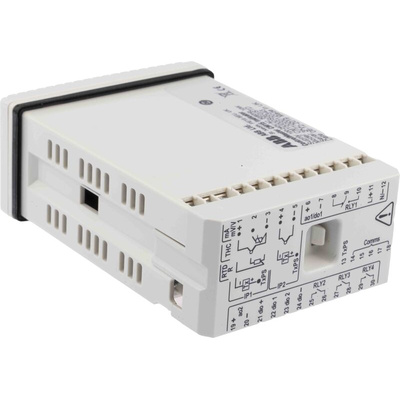

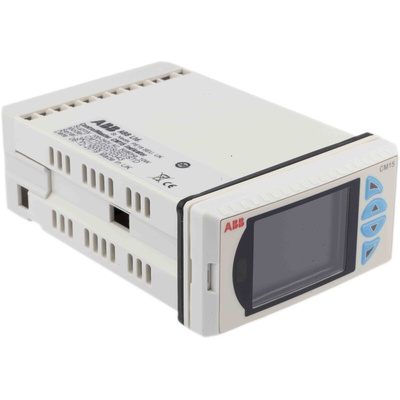

CM15/000S0E0/STD, ABB CM15 Process Indicator, 50 x 97mm, 2 Output Analogue, Relay, 100 240 V ac Supply Voltage ON/OFF, Регулятор температуры

ControlMaster PID Controller CM15

The ControlMaster CM15 is a feature-packed universal process indicator in an industry standard 1/8 DIN profile for quick and easy installation. The full-colour, TFT display shows operators a range of information tailored exactly to the user’s needs and provides operation and configuration menus in full text. The full text display makes the CM15 intuitive to use as well as quick to install and commission.

The CM15 offers a range of functionality such as totalisation for calculations of flor total values and pulse counting capability.

Comprehensive hardware and software additions mean the CM15 is scalable to match almost any application requirements.

8 Independent process alarms for monitoring analogue signal, alarms can drive physical outputs or soft-wired to other functions. 2 totalisers can be integrated against analogue signal to totalise flow, count digital pulses and totalise flow based on frequency signal from electromagnet flow meter.

Features and Benefits

• Full-colour 5.5cm (2.2") user-customisable TFT display
• Intuitive user interface with clear text prompts to make installation, commissioning and operation quick and simple
• Direct, high accuracy connection to electromagnetic flowmeters
• 2 universal inputs, 1 analogue output and 1 relay output, as standard
• Calculation and display of flow total values
• Pulse counting capability
• IP66 and NEMA 4X environmental protection

Functionality:

• 8 Process alarms
• Totalisation
• Volume computation
• SG compensation
• Minimum, maximum and average calculation

I/O Build:

• 2 Analogue inputs
• 1 Analogue O/P
• 1 Relay

Base Templates:

• Single PV indication
• Single PV with totalizer
• Single totalizer
• Single level with volume
