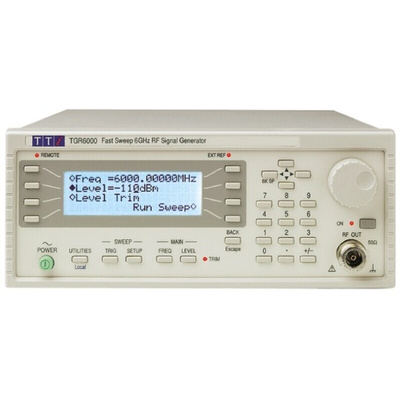

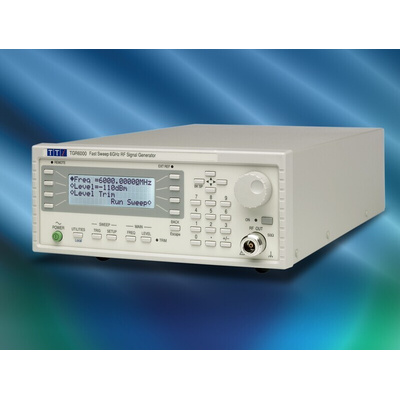

Aim-TTi TGR6000 TGR 6000 Waveform Generator 6GHz, Генератор сигналов

7377183
Номер производителя: TGR6000Производитель: Aim-TTi
Цена за шт.
1237200.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Aim-TTi RF Signal Generator

The Aim-TTi RF waveform generator is high tech, single-channel, RF signal generator. This device supports frequencies from 10MHz to 6GHz. It is a low-cost signal generator intended for carrier wave applications where modulation is not required. The generator is simple and intuitive to use. There is a provision to directly enter frequency and level from the keyboard in any units preferred. Alternatively, values can be changed in user-defined increments using the spin wheel or up/ down keys. The 4 line display has soft key functionality for setting up more complex functions such as sweep lists.
Supplied with operating manual, driver software, power lead.

Features and Benefits

Accuracy better than 1ppm over 15°C to 30°C
Ageing better than 1ppm over 1 year
The supply voltage ranging from 100VAC to 240VAC
External frequency reference input
Low phase noise and low leakage
Fast stepping sweep with dwell times down to 10 millisecond
List sweep of up to 1000 points of amplitude vs frequency
User compensation tables for specific test set-ups
Storage for 12 generator set-ups and 16 sweep lists
Compact half-rack 2U casing uses minimum bench space
Incorporates full remote control using USB, RS-232, GPIB and LAN (Ethernet) interfaces
Significantly lower cost than other 6GHz generators
20 character x 4 row backlit alphanumeric LCD

Applications

Telecommunication
Electronics laboratories
Educational institutes
Electronics designing
Service and maintenance

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Техническая спецификация
pdfTGR6000 6GHz RF signal generator - CW with sweep Data Sheet
Ввод данных:
Клавиатура
Вес:
3.7кг
Входы:
AC In, Reference In, Trig In
Высота:
86.5мм
Длина:
350мм
Максимальная частота:
6ГГц
Минимальная частота:
10 МГц
Модель р:
TGR 6000
Рабочая температура - максимальная:
+40°C
Рабочая температура - минимальная:
+5°C
Развертка:
Линейный, Логарифмический
Размеры:
350 x 213.5 x 86.5мм
Разрешение:
0.1 дБ
Тип вилки:
Type C - European Plug, Type G - British 3-pin
Тип дисплея:
20 Char x 4 Rows
Тип интерфейса:
GPIB, LAN, RS232, USB
Ширина:
213.5мм
