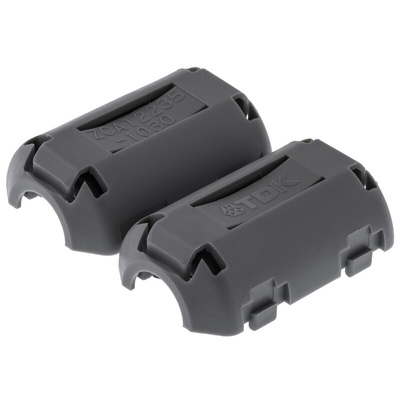

ZCAT2235-1030A, TDK Ferrite Sleeve, 28 Dia. 35mm, For EMC Absorption, Apertures: 1, Diameter 10mm, Ферритовый сердечник

7413056
Номер производителя: ZCAT2235-1030AПроизводитель: TDK
Цена за шт.
963.00 руб. (С НДС) *
Количество 25+ 50+ 100+ 250+
Цена 924.00 руб. 873.00 руб. 807.00 руб. 723.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

ZCAT Series Snap Fixing Cable Ferrites

ZCAT Series clamp filters for cable applications are constructed from a unique plastic case to ensure simple, convenient installation. They feature a self-holding mechanism to prevent slippage on cables. ZCAT Series has a ferrite core which provides excellent absorption of high-frequency EMC. They are highly effective as a countermeasure against common mode EMC without adverse effect on signal quality, and have a large core size which prevents saturation during large signal surges.

Applications for the ZCAT series include:

• Personal computers
• Word processors
• Monitors
• Hard disk drives
• Digital telephones
• Audio devices
• Electronic musical instruments
• Video games
• Copiers
• Facsimiles

Split Ferrite Rings

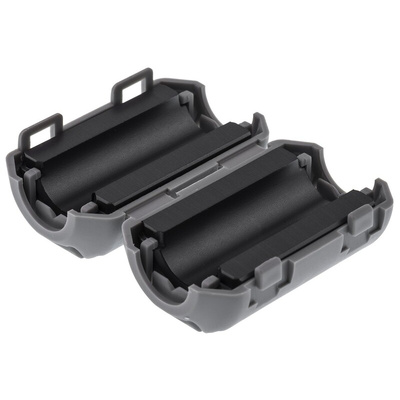

These split ferrite cores reduce the electromagnetic interference from being induced in or radiated from data and power cables. High attenuation ratings are achieved with the housing design and the special process steps during the ferrite manufacture. The special snap lock makes the ferrite sleeve suitable for use with a variety of cable diameters and once the split ferrite is locked it cannot be opened accidentally.The outer housing is designed to protect the halves of the core from breakage and ensures simple assembly on to cables that are already installed or which have been fitted with connectors. Fixing to the cable with glue or cable tie is optional. Typical applications for these split ferrite cores include data or power lines used in computer technology, terminals, industrial controllers, medical engineering and office machines.

Техническая спецификация
pdfDatasheet
pdfZCAT series Clamp Filters Datasheet
Внешняя высота:
20мм
Внешняя глубина:
10мм
Внешняя ширина:
35мм
Количество апертур:
1
Материал:
30 Материал
Наружные размеры:
28 диаметр 35мм
Отверстие - диаметр:
10мм
Применение:
EMC Absorption
Серия:
ZCAT
Тип:
Сферическая
