88974080, Crouzet Millenium 3 Logic Module Starter Kit, 24 V dc Relay, 8 x Input, 4 x Output With Display, Логический модуль

7424194
Номер производителя: 88974080Производитель: Crouzet
Цена за шт.
71097.00 руб. (С НДС) *
Количество 5+ 10+ 25+ 50+
Цена 67542.00 руб. 63987.00 руб. 60432.00 руб. 56877.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

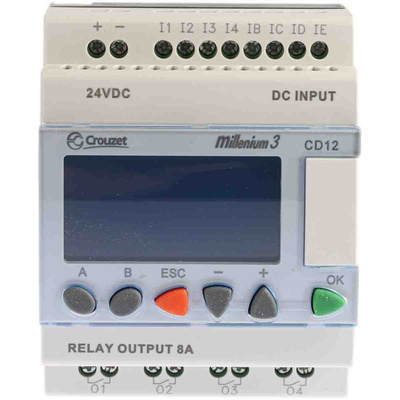

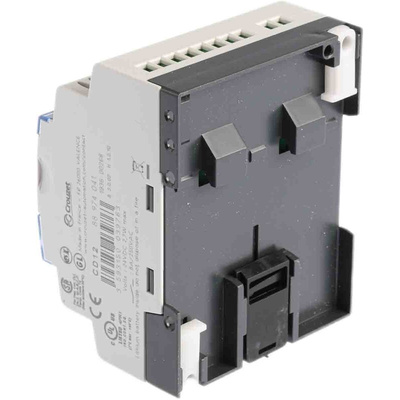

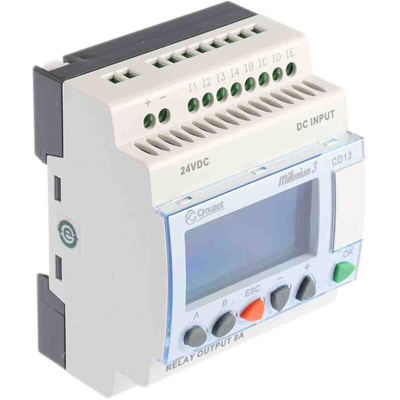

Crouzet Logic Module Starter Kit

The Crouzet Millenium 3 series logic module starter kit consists of the latest generation of the Millenium compact version CD12/CD20 series with 8 digital(including 4 analogues) inputs and 4 relay outputs of 8A contact current rating. This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a voltage rating of 24VDC.
Each standard kit includes:
1 standard Millenium 3 (CD12 or 20)
1 USB link cable: PC → Millenium 3

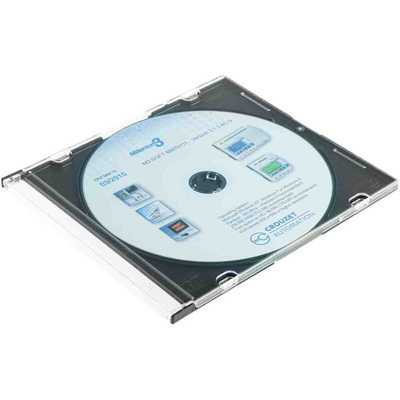

1 interactive CD ROM including the software workshop, application library and technical brochures, the library of specific functions
Crouzet Millenium 3
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming.

Features and Benefits

Operating temperature ranges between -20°C and +55°C
Battery backup
Highly visible blue LCD with 4 lines of 18 characters
and configurable backlighting
Allow the use of the entire library of specific functions
blocs of the software workshop
Analogue inputs 0-10 VDC, Potentiometer, NTC, LDR
(0-20 mA/Pt100 with converters)
Choice of ladder or function block programming
Serial, USB port communication
Protects program
Selective configuration
Memory back-up using EEPROM
ESD protected
Expandable controller
LCD display
Memory size 368bits

Applications

Automatic washing equipment
Agricultural machinery
Managing air conditioning
Heating systems

Certifications

CSA certified
UL approved

Техническая спецификация
pdfMILLENIUM 3 SMART STARTER KIT CD12 24V Data Sheet
Выходной ток:
8
Дисплей в комплекте:
Да
Интерфейс программирования:
Передняя панель
Используемый язык программирования:
Многоступенчатая логика
Количество входов:
8
Количество выходов:
4
Количество коммуникационных портов:
2
Программный объем:
368 бит
Рабочая температура - максимальная:
+55°C
Рабочая температура - минимальная:
-20°C
Тип входа:
Аналоговый, Цифровой
Тип выхода:
Реле
Тип коммуникационного порта:
Serial, USB
Тип монтажа:
DIN Rail
