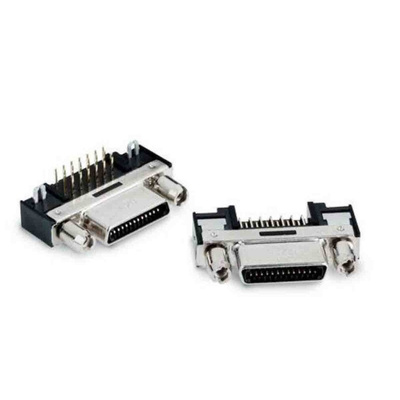

12226-5150-00FR, 3M 26-Way IDC Connector Socket for Through Hole Mount, 2-Row, Разъем

Shrunk Delta Ribbon (SDR) Connectors

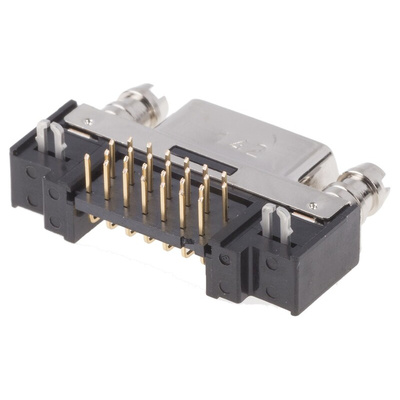

These 3M 122 Series Shrunk D Ribbon (SDR) Boardmount Shielded Receptacles have a low profile 0.8 mm pitch. The design of these 122 Series Shrunk D Ribbon (SDR) Boardmount Shielded Receptacles includes provision for M2 Jacksocket screws available separately, see below, or factory installed for stock numbers: 770-9209 and 770-9206 .

Jacksocket Screws:

770-9212 : M2 for 0.8 mm thick Panel
770-9221 : M2 for 1.2 mm thick Panel

122xx-xx5x-xxxx: Non-removable M2 Screw Jacks installed
122xx-xxxx-xxFR: 0.76 μm Gold plating on contact area and Gold Flash on solder Tails
122xx-xxxx-xxPL: 0.2 μm Gold plating on contact area and Gold Flash on solder Tails

Shrunk Delta Ribbon (SDR)

The Shrunk Delta Ribbon Connector (SDR) solution uses the same ribbon contact system and polarized steel shell interface as used in MDR connectors but in a compact 0.8 mm pitch package without sacrificing transmission performance. The SDR connectors can be used to directly replace existing MDR Camera Link® applications.

3M SDR Connectors Data Sheet

General
