2080-LC30-48QWB, Allen Bradley Micro830 PLC CPU - 28 Inputs, 20 Outputs, ModBus Networking, Operating Panel Interface, ПЛК

Allen Bradley PLC CPUs

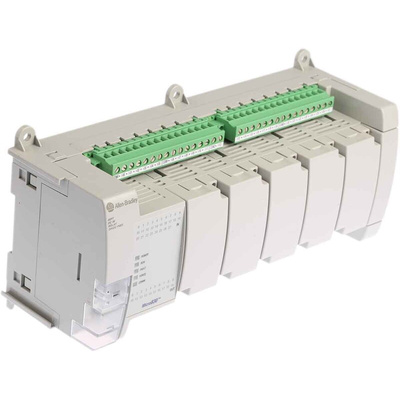

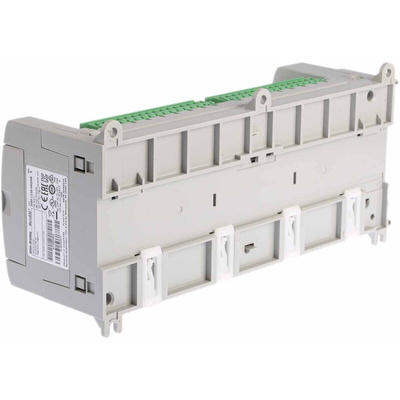

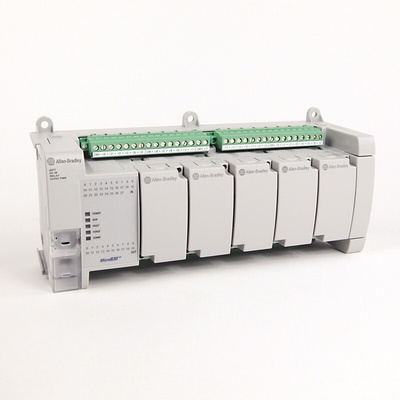

The Allen Bradley Micro830 controller with 28 digital inputs and 20 relay outputs which have a contact rating of 2A. It allows easy incorporation of as many as five plug-in modules. This plug-in module enables machine builders to personalize the controllers to increase functionality without expanding the product footprint. This new controller family also offers removable terminal blocks (most models) and simplified communication via a serial port.
Controllers include:
As many as six high-speed counter inputs (HSC)
As many as three pulse train outputs (PTO)
100kHz speed HSC available on 24VDC models
High-speed input interrupts
Modbus RTU protocol (serial port)
Embedded USB programming and serial port (RS232/485)

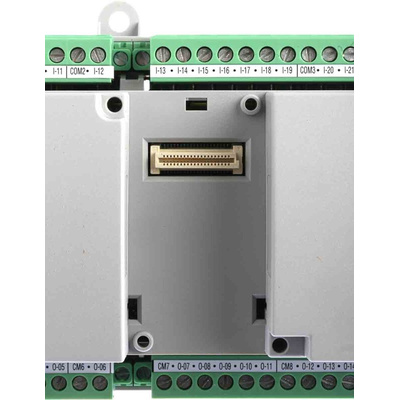

Plug-in slots to customize according to needs

Features and Benefits

Different controller types sharing the same form factor and accessories
Form factor based on number of I/O points embedded in the base is48
standard version of connected components workbench software available as a free download
Wide range of plug-in modules allow you to change the personality of the base unit controller
It has up to 5 plug-ins for 48pt controller
Designed for standalone machine control applications which require simple motion using PTO
Controllers include built-in support for up to 3 axes of motion
Single axis moves supported via PLC open motion instructions
Embedded communications
USB programming
Non-isolated serial port
Operating temperature ranges between -20°C and 65°C

Applications

Industrial automation
Robotics
Automobile industry

Certifications

C certified
UL listed
us CL1DIV2
CE certified
Marine
C-Tick
