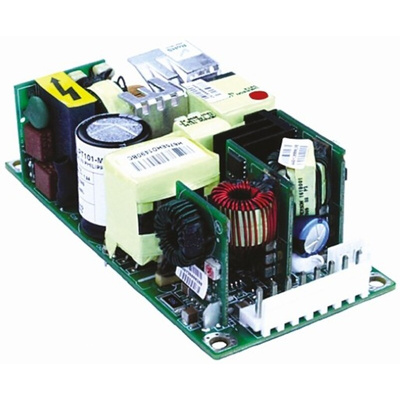

LPT104-M, Artesyn Embedded Technologies, 80W Embedded Switch Mode Power Supply SMPS, 5 V dc, 12 V dc, 24 V dc, Open Frame,, Источник питания

7511594
Номер производителя: LPT104-MПроизводитель: Artesyn Embedded Technologies
Цена за шт.
24891.00 руб. (С НДС) *
Количество 5+ 10+ 25+ 50+
Цена 23895.00 руб. 23148.00 руб. 21903.00 руб. 20412.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Switch Mode Medical Approved Triple Output AC/DC Power Supply - LPT100-M Series

Switch mode triple output AC/DC embedded power supplies with a low safety ground leakage current and medical and ITE approval. These switch mode AC/DC power supplies have a universal AC input, triple output voltage with an adjustable main output, active PFC, a built in EMI filter and dual AC fuses . The footprint for these AC/DC power supplies is 2" x 4" with a height of less than 1U. Suitable applications for these embedded AC/DC power supplies include information technology equipment (ITE) and light industrial systems, as well as for equipment intended for non-patient contact and non-patient critical use in low power medical, dental and laboratory applications.

Worldwide IT equipment (ITE) approval
Universal AC input
Active Power Factor Correction
Adjustable main output
High efficiency
Overload and overvoltage protection
Thermal overload protection
Remote sensing
Power fail
Built in EMI filter (CISPR 22 Class B)
Safety ground leakage current of 275ua @ 50/60 Hz; 264 VAC input
EMI//RFI Compliance: FCC Class B conducted; CISPR22 Class B conducted; EN55022 Class B conducted; VDE0878PT3 Class B conducted
Harmonic current compliance: EN61000-3-2

Note

A connector kit is available, please see stock number 751-2610
Derate each output as 2.5% per degree from 50° to 70 °C

Standards

TUV 60950, 60601-1, UL 60950, 60601-1, CSA 60950, 60601-1, NEMKO 60950, 60601-1, AUSTEL 60950, 60601-1, CB Certificate & report,CE Mark (LVD)

Approvals

UL, TUV

Техническая спецификация
pdfSwitch Mode Medical Approved Triple Output AC/DC Power Supply - LPT100-M Series
Вес:
200гр
Входное напряжение:
90 → 264В перем. тока
Выходной ток:
2.3 A, 3 A, 18 A
Глубина:
32.7мм
Длина:
101.6мм
Количество выходов:
3
Максимальная температура:
+50°C
Медицинское одобрение:
Да
Минимальная температура:
0°C
Мощность номинальная:
80Вт
Напряжение выходное:
5 В пост. тока, 12 В пост. тока, 24 В пост. тока
Тип монтажа:
Монтаж на шасси
Тип упаковки:
Открытая рамка
Ширина:
50.8мм
