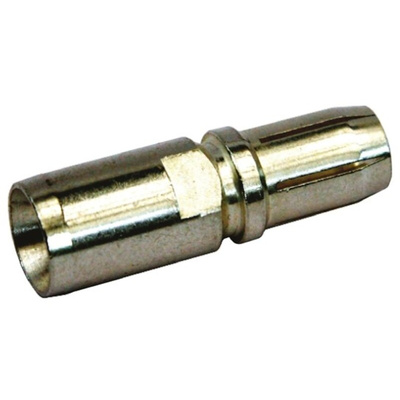

09110006212, HARTING TC 100 Female 100A Crimp Contact Minimum Wire Size 10mm² Maximum Wire Size 25mm² for use with Han GND Series

7560076
Номер производителя: 09110006212Производитель: HARTING
Цена за шт.
4446.00 руб. (С НДС) *
Количество 5+
Цена 3753.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Han GND Screw Contacts

Can be connected without a special tool, a screwdriver can be used to make a quick and easy reliable connection

Han GND Range

The Harting Han GND range enables a pluggable grounding system, it is the solution for potential equalisation. It is now possible to execute grounding systems in a pluggable design for the first time. The advantage of this system is to enable quick and error free commissioning. Potential equalisation lines are still being permanently connected, which is relatively time consuming and can be subject to errors. The single pole connector in the durable IP65 plastic housing is designed for stranded wires from 10-35mm² and is optionally available in crimp or axial screw termination. The screw termination has the advantage of the lines being connected without a special tool.

Техническая спецификация
pdf100A axial screw contact female 10-25mm
pdfHan Gnd Data Sheet
Maximum Wire Size mm²:
25мм²
Minimum Wire Size mm²:
10мм²
Диапазон:
Han HC
Для использования с:
Han GND Серия
Концевая заделка:
Crimp
Номинал тока:
100A
Род:
Female
Серия:
TC 100
Тип аксессуара:
Обжимной контакт
