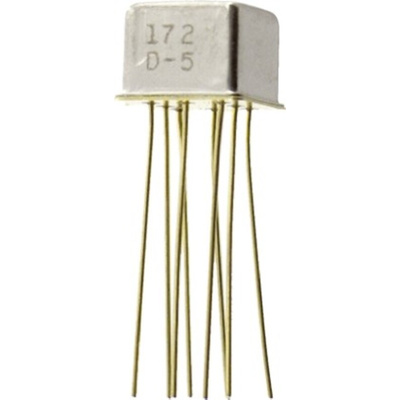

172D-5, Teledyne DPDT PCB Mount, RF Relay 5V dc, Реле

7582436
Номер производителя: 172D-5Производитель: Teledyne
Цена за шт.
15981.00 руб. (С НДС) *
Количество 5+ 10+ 25+ 50+
Цена 15366.00 руб. 14799.00 руб. 14358.00 руб. 13989.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Teledyne RF Relay

The Teledyne Centigrid® RF relay is an ultra-miniature, hermetically sealed and DPDT armature device. It has a coil voltage rating of 5VDC. It has a low profile height and grid spaced terminals that prevent the need for spreader pads and make them suitable for use when close PCB spacing is required. The series 172 relay has an internal discrete silicon diode for coil transient suppression.

Features and Benefits

Advanced cleaning techniques provide maximum assurance of internal cleanliness
All welded construction
Coil resistance is 64ohm
Maximum DC voltage rating is 5.8VDC
High force/mass ratios for resistance to shock and vibration
Low insertion loss - isolation and intercontact capacitance of 0.4pF
Excellent switching performance from DC to 2GHz
Precious metal alloy contact material with gold plating ensures excellent high current and dry circuit switching capabilities
Unique uni-frame design provides high magnetic efficiency and mechanical rigidity
Operating temperature ranges between -55°C and 85°C

Applications

Attenuators
Mobile communication
Telecommunication
Test instruments

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Техническая спецификация
pdfCentigrid Relays Series 172 Data Sheet
pdfElectromechanical Relays Selection Guide Data Sheet
Время работы, в том числе отказов:
6мс
Высота:
7.11мм
Глубина:
8.51мм
Диапазон рабочих температур:
-55 → +85°C
Длина:
8.51мм
Катушка напряжение:
5В пост. тока
Контактное напряжение:
28В пост. тока
Конфигурация контактов:
DPDT
Материал контактов:
Золоченый
Мощность катушки:
405мВт
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-55°C
Размеры:
8.51 x 8.51 x 7.11мм
Сопротивление катушки:
64 Ом
Сопротивление контакта:
150 мОм
Срок службы:
5000000 циклов
Тип монтажа:
Крепление на печатной плате
