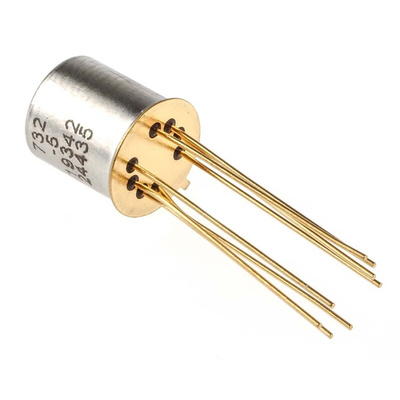

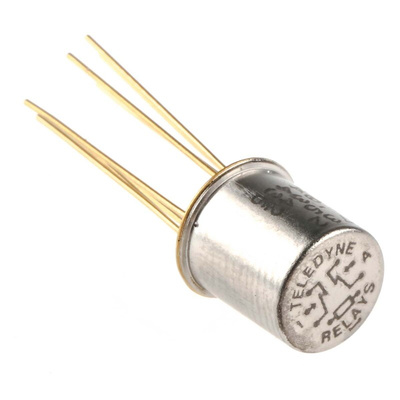

732-5, Teledyne DPDT PCB Mount, RF Relay 5V dc 9.4mm, Реле

7582455
Номер производителя: 732-5Производитель: Teledyne
Цена за шт.
16239.00 руб. (С НДС) *
Количество 5+ 10+ 25+ 50+
Цена 15609.00 руб. 15039.00 руб. 14502.00 руб. 13998.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

TO-5 RF Relay - 732 Series

Teledyne's TO-5 DPDT relays have become one of the industry standards for low level switching from dry circuit to 1 Amp. Designed for use when close PCB spacing is required, the 732 series have a low coil power dissipation in an sub-miniature relay package.
With a low inter-contact capacitance and contact circuit losses, the 732 series of TO-5 relays are an excellent sub-miniature RF switch for frequencies well into the UHF spectrum (see datasheet for performance curves). In addition to the standard types there are the 732D relays which have an internal discrete silicon diode that provides coil transient suppression.
A typical RF application for the TO-5 relay is in hand held radio transceivers, the combined features of good RF performance, small size, low coil power dissipation and high reliability make it a preferred method of Transmit/Receive switching.

Hermetically sealed
High resistance to shock and vibration
Gold plated contacts
Low insertion loss - isolation and intercontact capacitance of 0.4pF
Uni-frame design provides high magnetic efficiency and mechanical rigidity
High reliability and excellent resistance to environmental extremes

Техническая спецификация
pdf732 Series Relay Data Sheet
pdfElectromechanical Relays Selection Guide Data Sheet
Время работы, в том числе отказов:
6мс
Высота:
9.76мм
Диаметр:
9.4мм
Диапазон рабочих температур:
-55 → +85°C
Катушка напряжение:
5В пост. тока
Контактное напряжение:
28В пост. тока
Конфигурация контактов:
DPDT
Материал контактов:
Золоченый
Мощность катушки:
200мВт
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-55°C
Размеры:
9.4 x 9.76мм
Сопротивление катушки:
100 Ом
Сопротивление контакта:
150 мОм
Срок службы:
10000000 циклов
Тип монтажа:
Крепление на печатной плате
