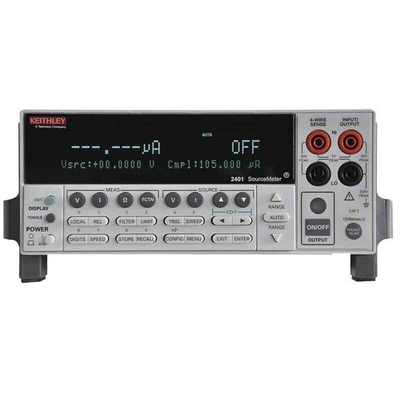

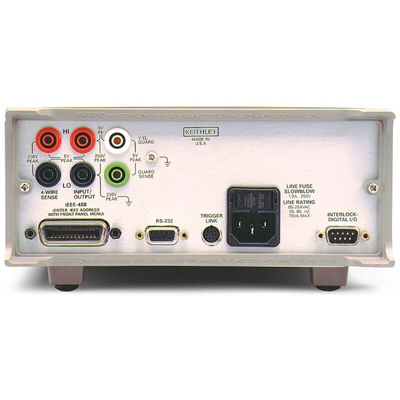

Keithley 2401 Sourcemeter, 1 Ch, 0.2 Ω → 200 MΩ ±1 μA → ±1 A ±200 mV → ±20 V 20 W, Источник-измеритель

Keithley Sourcemeter

The Keithley 2400 series 20W rated sourcemeter is 1-channel lab equipment. The output voltage rating ranges between ±200mV and ±20V and outputs current rating ranges between ±1μA and ±1A. It offers a low cost, tightly integrated sourcing and measurement, and a wide dynamic range. This makes the series a well-suited device for benchtop and system applications with low voltage requirements and with limited test hardware budgets.
Inclusions:
Test leads and (downloadable) LabVIEW software driver, LabTracer software, TestPoint software driver.
Note:
All SourceMeter instruments provide a 4-quadrant operation. In the 1st and 3rd quadrants, it operates as a source, delivering power to a load. In the 2nd and 4th quadrants, it operates as a sink by dissipating power internally. The voltage, current and resistance can be measured during source or sink operation.
Note:
Applications include resistive devices
diodes
optoelectronic components
IDDQ testing.

Features and Benefits

Resistance measurement ranges between 0.2ohm and 200Mohm
0.012% basic measure accuracy with a 6-1/2 digit resolution
1700 readings/second at 4digits via GPIB
6-wire remote V-source and measure sensing
5 instruments in one (IV source, IVR measure)
Available high speed sense lead contact check function
Keithley LabTracer 2.0 I-V curve tracing application software (download)
Pass/fail comparator for fast sorting/binning
Source and sink (4-quadrant) operation
Standard SCPI GPIB, RS-232 and Keithley trigger Link: interfaces
Built-in comparator for fast pass/fail testing

Applications

Airbags
Circuit protection devices: TVS, MOV, fuses, etc
Connectors, switches, relays
Discrete semiconductor devices
High brightness LEDs (DC and pulse)
ICs, RFICs, MMICs
Laser diodes, laser diode modules, LEDs, photodetectors
Passive devices
Active/passive component test
Transient suppression devices
Voltage/current/resistance measurements
Battery operation validation for portable electronic devices
Characterising implantable medical devices (e.g. pacemakers)
Characterising low-leakage electronic device/circuits (forward/reverse, transistor gain/leakage)
Calibrating 3 to 4-digit data acquisition boards, meters
DMMs

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
