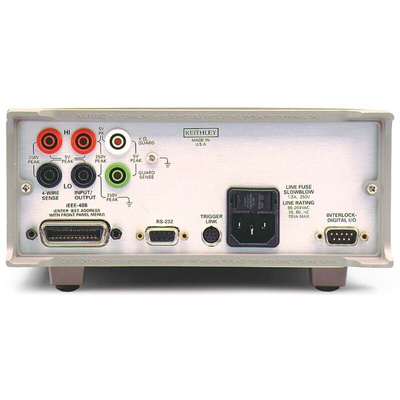

Keithley 2410 Sourcemeter, 1 Ch, 0.2 Ω → 200 MΩ ±1 μA → ±1 A ±200 mV → ±1000 V 20 W, Источник-измеритель

7588866
Номер производителя: 2410Производитель: Keithley
Цена за шт.
3810000.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Keithley Sourcemeter

The Keithley 2400 series 20W rated sourcemeter is 1-channel lab equipment. The output voltage rating ranges between ±200mV and ±1100V and outputs current rating ranges between ±1μA and ±1A. It offers a low cost, tightly integrated sourcing and measurement, and wide dynamic range. This makes the series a well-suited device for benchtop and system applications with low voltage requirements and with limited test hardware budgets.
Inclusions:
Test leads and (downloadable) LabVIEW software driver, LabTracer software, TestPoint software driver.
Note:
All SourceMeter instruments provide a 4-quadrant operation. In the 1st and 3rd quadrants, it operates as a source, delivering power to a load. In the 2nd and 4th quadrants, it operates as a sink by dissipating power internally. The voltage, current and resistance can be measured during source or sink operation.
Note:
Applications include resistive devices
diodes
optoelectronic components
IDDQ testing.

Features and Benefits

Resistance measurement ranges between 0.2ohm and 200Mohm
0.012% basic measure accuracy with a 6-1/2 digit resolution
1700 readings/second at 4digits via GPIB
6-wire remote V-source and measure sensing
5 instruments in one (IV source, IVR measure)
Available high speed sense lead contact check function
Keithley LabTracer 2.0 I-V curve tracing application software (download)
Pass/fail comparator for fast sorting/binning
Programmable digital I/O port for automation/ handler/ prober control
Source and sink (4-quadrant) operation
Standard SCPI GPIB, RS-232 and Keithley trigger Link: interfaces
Built-in comparator for fast pass/fail testing

Applications

Airbags
Circuit protection devices: TVS, MOV, fuses, etc
Connectors, switches, relays
Discrete semiconductor devices
High brightness LEDs (DC and pulse)
ICs, RFICs, MMICs
Laser diodes, laser diode modules, LEDs, photodetectors
Passive devices
Transient suppression devices

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Техническая спецификация
pdfSeries 2400 SourceMeter Users Manual
pdfSeries 2400 SourceMeter Data Sheet
Диапазон измерения сопротивления:
200 mΩ tΩ 200 MΩ
Диапазон напряжения источника:
±200 мВ → ±1000 В
Диапазон тока источника:
±1 мкА → ±1 A
Количество каналов:
1
Мощность выходная:
20 Вт
Серия:
2400
Функция источника-измерителя:
Current Resistance Voltage Measure, Current Voltage Source
