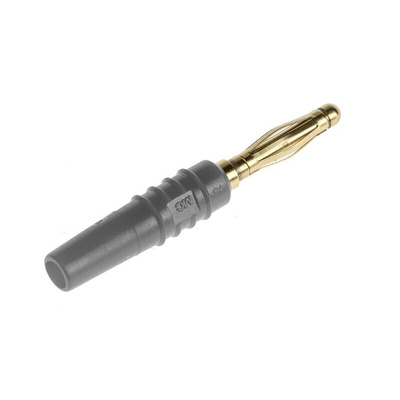

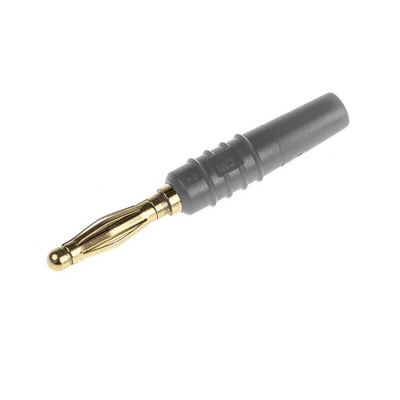

22.2618-28, Staubli Grey Male Banana Plug - Solder Termination, 30 V, 60V dc, 10A

7632929
Номер производителя: 22.2618-28Производитель: Staubli
Цена за шт. (норма упаковки 5 шт)
573.00 руб. (С НДС) *
Количество 5+ 50+ 125+ 250+
Цена 573.00 руб. 531.00 руб. 489.00 руб. 444.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Multi-Contact SLS205-L Series Multilam Inline 2 mm Plugs

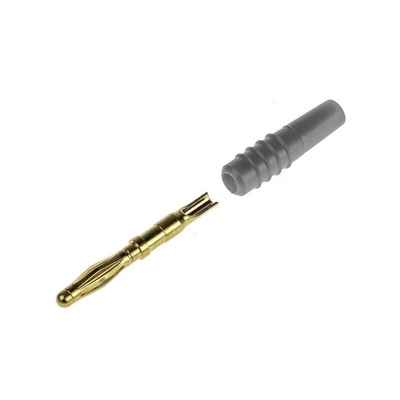

Multi-Contact SLS205-L series multilam inline 2 mm plug connectors are for the self assembly of test leads to your own specification and test lead application. These 2mm diameter gold plated inline plugs have a spring loaded miltilam contact with solder bucket connection and the press fit rigid insulator body allows for a maximum cable diameter of 2.1 mm, suitable for many applications that call for a 2 mm diameter multilam plug connector. The test plug insulator is assembled over an associated cable prior to soldering into the solder bucket, it is then a press fit over the 2 mm miltilam plug tang to finalise and complete the SLS205-L inline plug connector assembly.

2mm plug with spring loaded Multilam™
Gold plated
Solder connection for lead
Accepts 0.5mm2 lead up to maximum diameter of 2.1mm
Rated up to 30Vac / 60Vdc at 10A
Assembly instructions included
In-line lead connection
Compatible with LB-I2R 2mm socket

Note

Suitable for use with the LB-I2R range of panel mount sockets see 763-2926 and range.

2mm Multi-Contact Test Lead Plug and Socket Connectors

Multi-Contact 2 mm rigid and multilam plug connectors and socket connectors range is suitable for many applications that call for a self assembled 2 mm diameter plug test lead or a panel mount receptacle socket connector. The test plug insulator is assembled over an associated cable prior to soldering into the solder bucket, it is then a press fit over the 2 mm plug tang to complete.

Техническая спецификация
pdfSLS205-L Data sheet
Длина:
27мм
Концевая заделка:
Припой
Номинал тока:
10A
Номинальное напряжение:
30 V, 60V dc
Покрытие контактов:
Золото
Пружинный контакт:
Да
Размер разъема:
2мм
Род:
Male
Тип:
Banana Plug
Цвет:
Серый
